Ahlu Mechanical Press Flap Series- AMPF
AMPF series facilitate to eliminate the strain of scrap / pierced part removal from the die in each operation by synchronizing with power presses.
This not only reduces the Operator fatigue strain of unloading separately but also can help in automizing the operation if the loading of components is performed via separate feeders. Thus increasing efficiency and running the Power press at its peak efficient cycle/speed.
This not only reduces the Operator fatigue strain of unloading separately but also can help in automizing the operation if the loading of components is performed via separate feeders. Thus increasing efficiency and running the Power press at its peak efficient cycle/speed.
Common Characteristics of Mechanical Flap
- This Mechanical Flap design is synchronised with Press Ram movement proving To-Fro motion for Scrap / Component extraction.
- As Mechanical interlinking is done with respect to Flap functionality, change in speed of Power Press gets auto reflected into Flap movement.
- This design is easily suited with change in inclination angle based on requirement as per design standard
- Eliminates the need of Scrap / Component manual (human involved) removal in each stroke saving operation time cycle and provides capability for the operator to run the operation uninterrupted in a continuous manner.

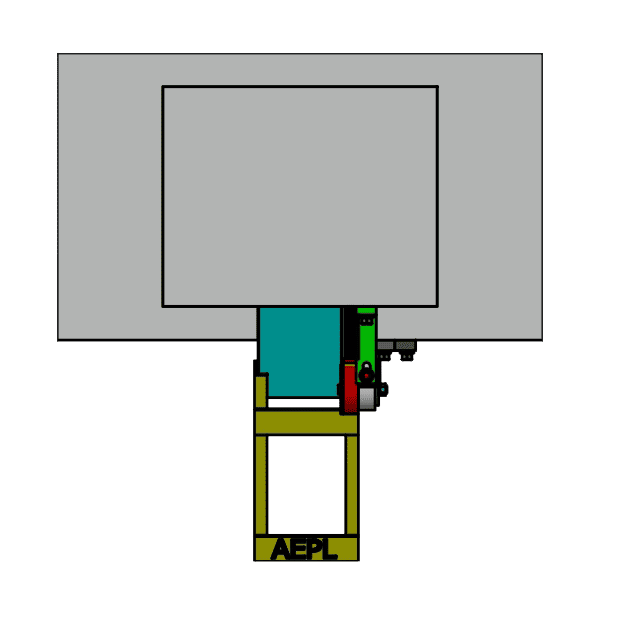

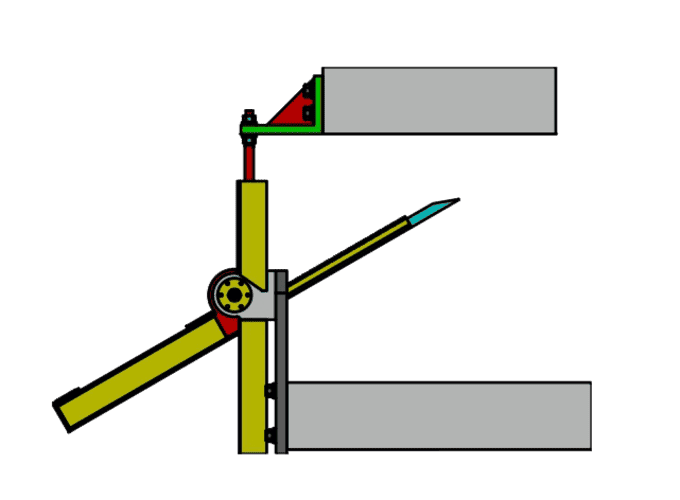

Topview layout

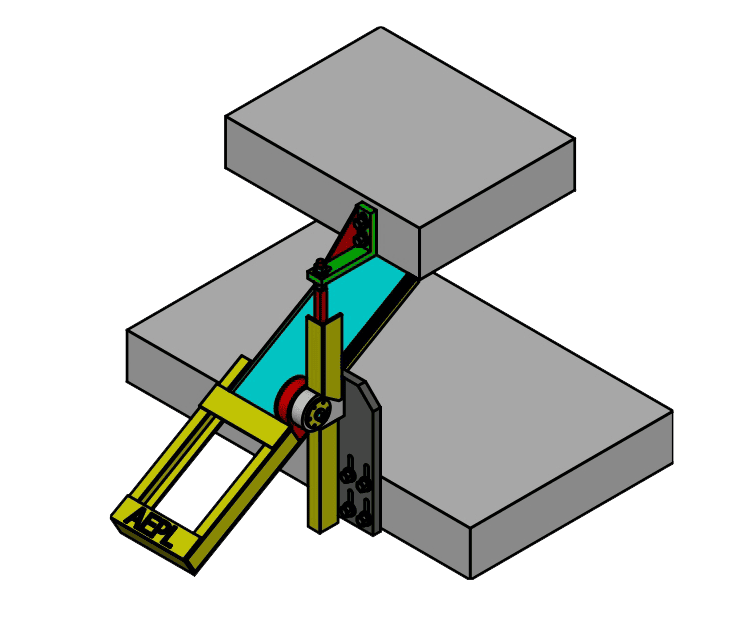

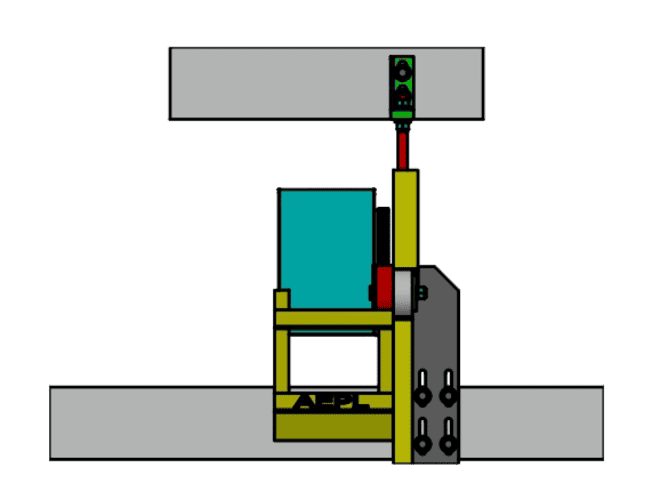

Isometric layout
*Shown only for easy reference purposes and may vary based on the actual component.
Specifications
| Parameters | Unit | AMPF-100 | AMPF-150 | AMPF-200 |
| Press Stroke. | mm | 100 | 150 | 200 |
| Press Speed Max. | mm | 100 | 75 | 50 |
| Flap Stroke Max. | mm | 150 | 300 | 500 |
| Flap Width. | mm | 100 | 150 | 200 |
*The contents are subject to change by manufacturer without prior notice.
