Ahlu Cantilever Servo Transfer System- ACSTS Series
Mount this system on a general-purpose press machine to achieve automated transfers in 2 Axis with minimal changes. Best suited for C frame type presses.
This programmable transfer system drives a transfer unit via a set of servo motors with the help of a Cantilever arrangement single bar mechanism.
Three variants of ACSTS series are available so that you can select a transfer pitch appropriate for your purpose.
This programmable transfer system drives a transfer unit via a set of servo motors with the help of a Cantilever arrangement single bar mechanism.
Three variants of ACSTS series are available so that you can select a transfer pitch appropriate for your purpose.
Common Characteristics of Single Bar System
- Each Servo Axis is operated with high accuracy with the help of Precision Servos.
- To Protect Tooling and Machine, each system is by-default comes with" mis-feed, die-stuckage & Jamming detection feedbacks are taken in each process cycle to provide required safety.
- The Position Synchronization is performed with the help of Rotary Encoders which connects to the crankshaft of the press. All the transfer axes are driven by servo motor and run synchronously with the press.
- Along with Encoders, Transfer System Controller stays in-continuous communication with press PLC along with the Additional Hard Sensors mounted on output shaft via Rotary cam box to reduce any accidental risk in case of Encoder failure.
- Blank Feeders are generally used to feed Blanks via Magazine type feeders but Servo Sheet Feeders or Zig Zag Feeders can also be utilized by customizing to suit Transfer system & its respective press.
Standard Features
- Precision Servo driven design for continuous use.
- Ethernet IP based Automation controller.
- Hi-speed Ethercat based slave communication.
- Easy Finger changeover.
- Easy On-site Remote Support available.
- IIOT enabled machine.
- Remote Monitoring System for Real time data tracking.
- Future Ready towards Industry 4.0.
- User friendly system with Operator manual over display.
- Battery less Absolute Encoder design for easy maintenance.
- Electrically protected safety operated against Voltage levels.
- Energy Monitoring system facilitates Asset management.
- Completely programmable system.
- Large sized Operator display (HMI) for ease.

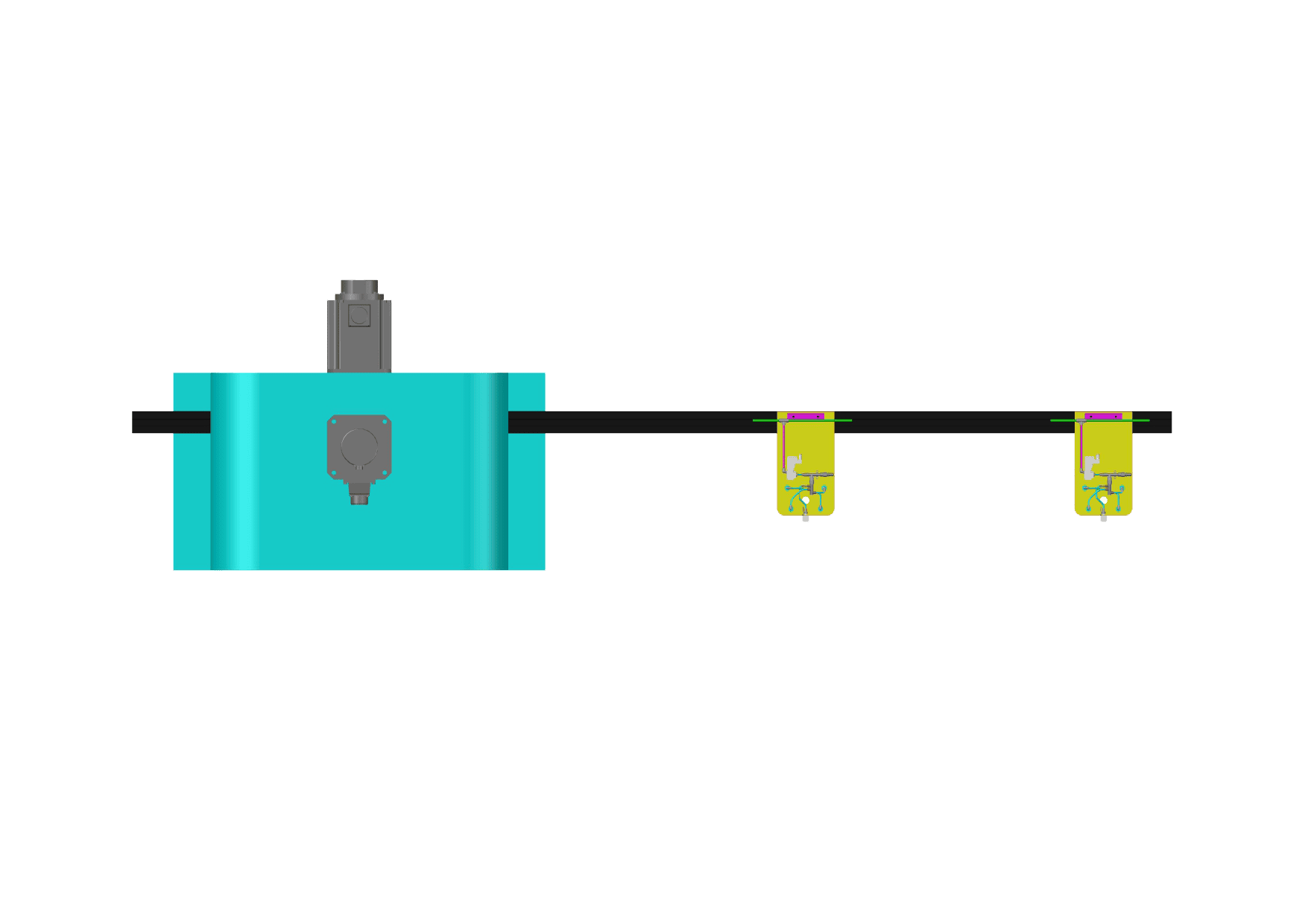

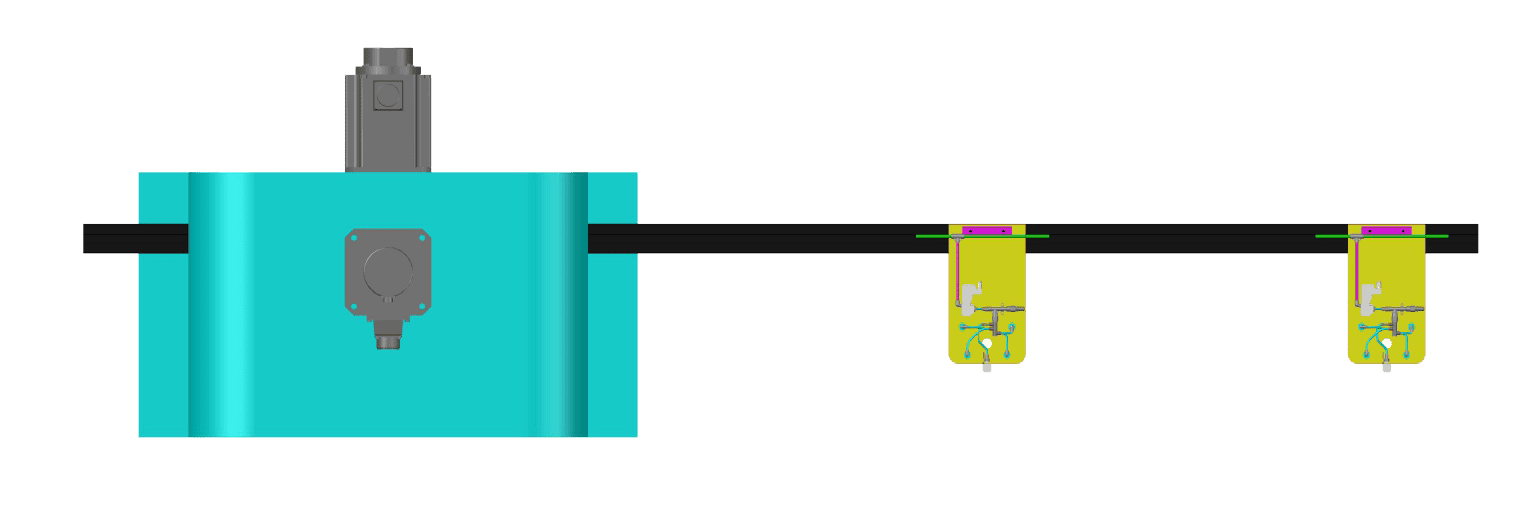

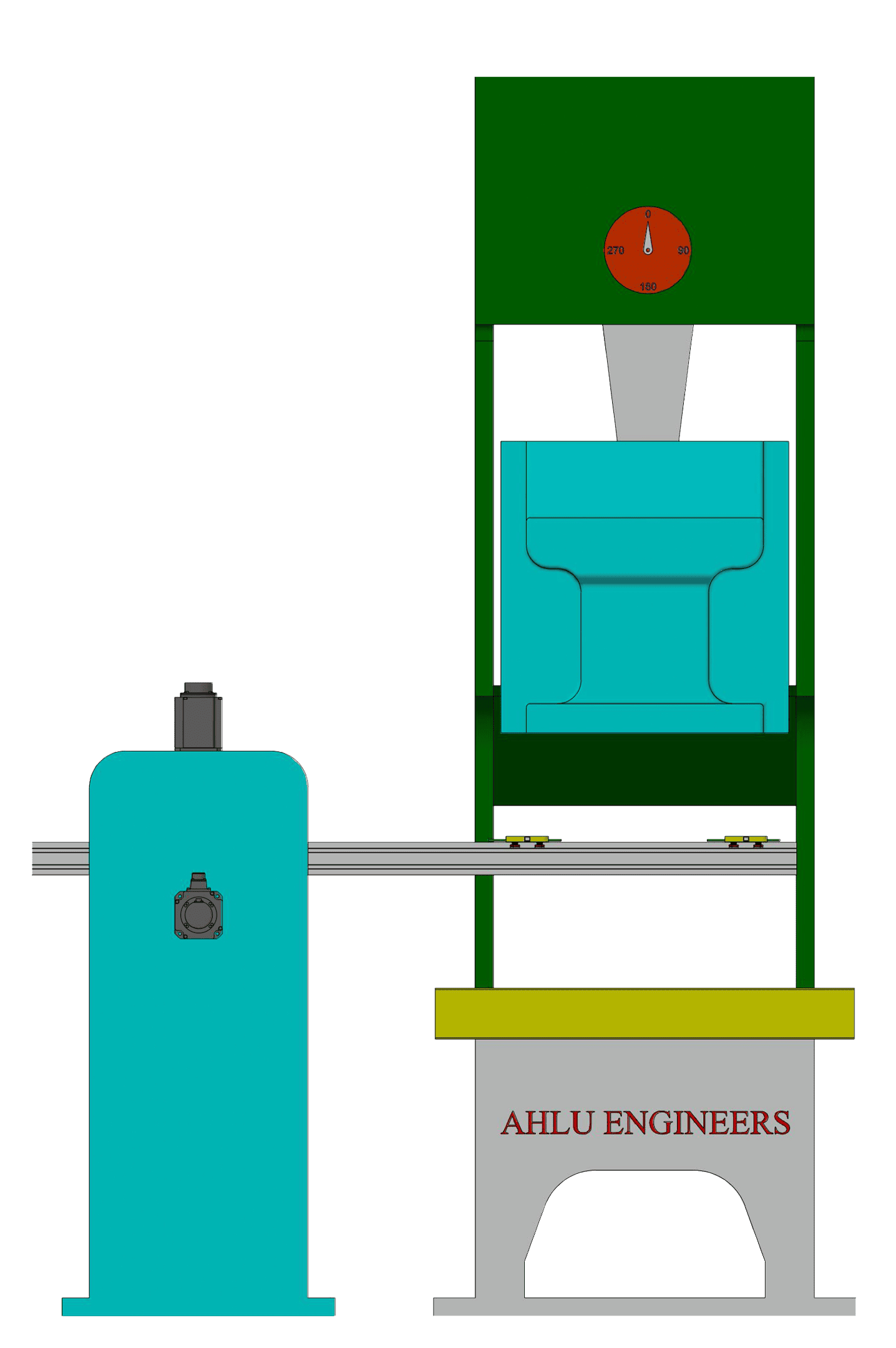

Topview layout
*Shown only for easy reference purposes and may vary based on the actual component.
Specifications
| Item | Unit | ACSTS-150L | ACSTS-300L | ACSTS-500L |
| X Axis / Transfer pitch | MM | 0-150 | 0-300 | 0-500 |
| Z Axis / Lift Amount | MM | 0-30 | 0-60 | 0-90 |
| Feed Bar Size | MM | 60 | 80 | 90 |
| Weight Capacity | KG | 2 | 3 | 5 |
| Feeding Accuracy | MM | ± 0.1 | ± 0.1 | ± 0.1 |
| Maximum Stroke Feed | SPM | 50 | 40 | 30 |
| Main Dimensions | MM | Please Contact | ||
| Supported Bolster Width | MM | Please Contact | ||
*The contents are subject to change by the manufacturer without prior notice.
