Ahlu Servo Transfer 2 Axis Single Bar type- AST2AI

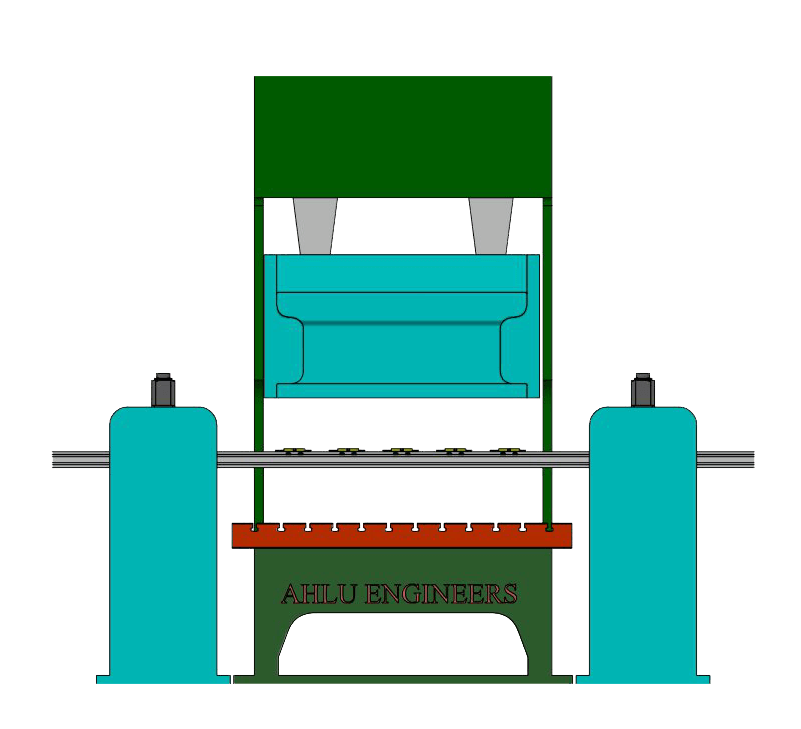

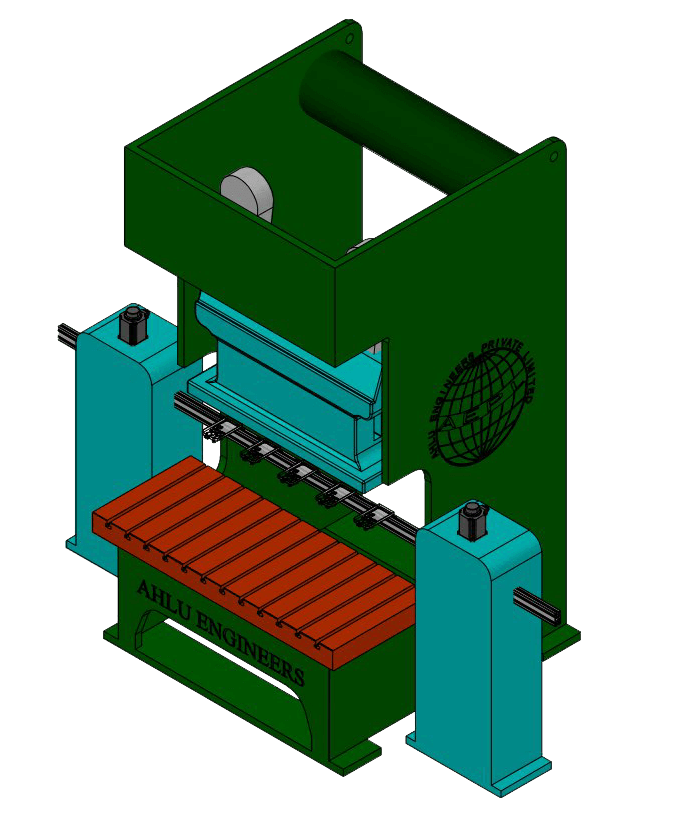

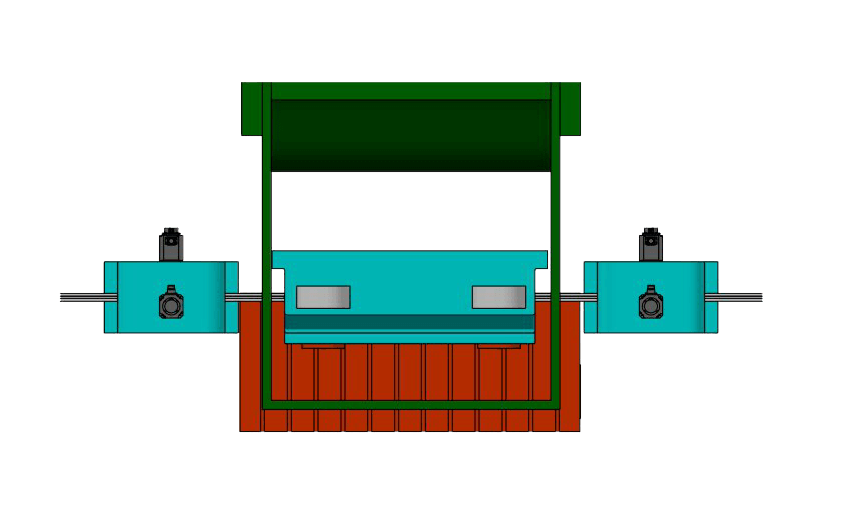

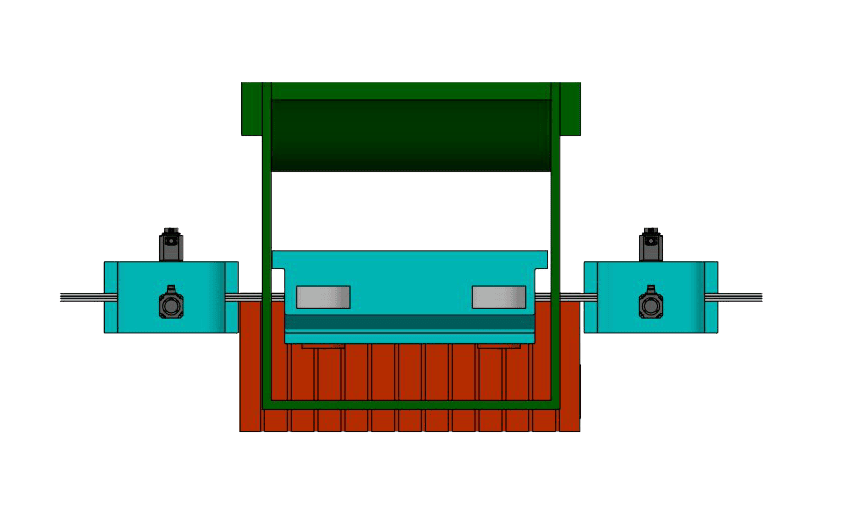

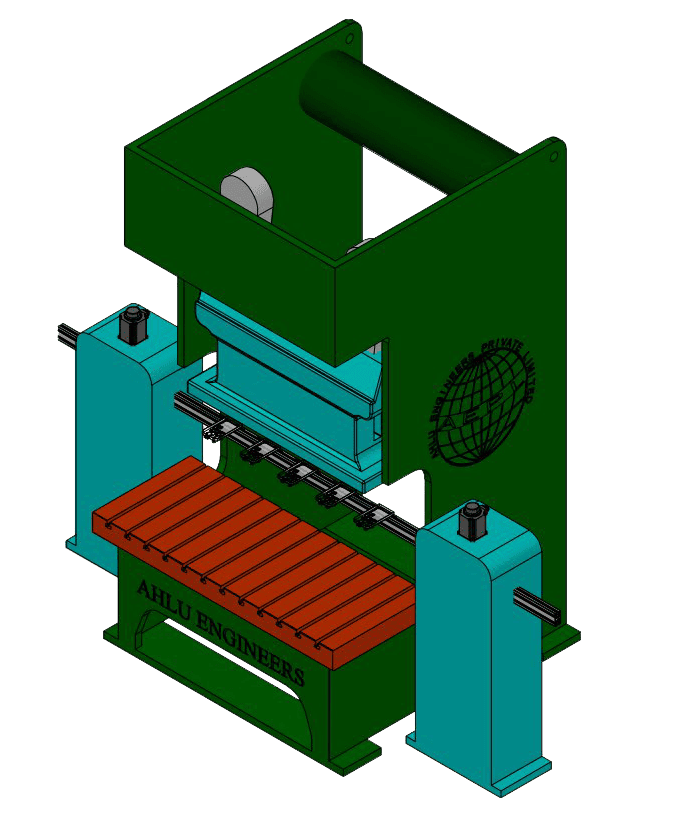

Mount this system on a general-purpose press machine to achieve Speedy transfers in 2 Axis for transfer processing. This Servo programmable transfer system drives a transfer unit with the help of a single bar mechanism in 2 axis and an additional gripper axis. Three variants of the AST2AI series are available so that you can select a transfer pitch appropriate for your purpose.

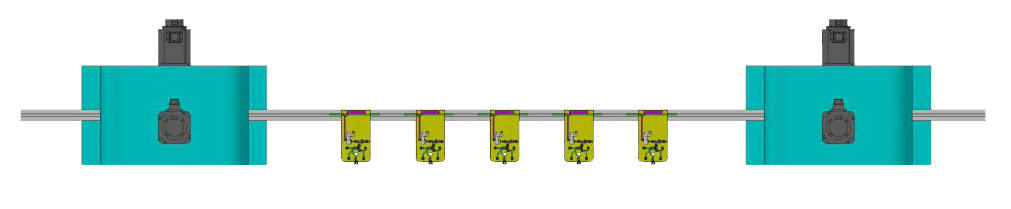

Common Characteristics of Single Bar System
- Each Servo Axis is operated with high accuracy with the help of Precision Servos.
- To Protect Tooling and Machine, each system is by-default comes with mis-feed, die-stuckage & Jamming detection feedbacks are taken in each process cycle to provide required safety.
- The Position Synchronization is performed with the help of Rotary Encoders which connects to the crankshaft of the press. All the transfer axes are driven by servo motor and run synchronously with the press.
- Along with Encoders, Transfer System Controller stays in-continuous communication with press PLC along with the Additional Hard Sensors mounted on output shaft via Rotary cam box to reduce any accidental risk in case of Encoder failure.
- Blank Feeders are generally used to feed Blanks via Magazine type feeders but Servo Sheet Feeders or Zig Zag Feeders can also be utilized by customizing to suit Transfer system & its respective press.
Technical Specifications
| Parameter | Value |
|---|---|
| Transfer Pitch / Stroke Range | 0–500 mm (3 variants) |
| Number of Axes | 2 (X Transfer + Z Lift) |
| Number of Servos | 2 + Gripper servo |
| Maximum SPM | 30 spm (AST2AI-150L) |
| Press Tonnage / Capacity Range | 80–300 Ton |
| Bar Type | Single Bar |
| Gripper Axis | Yes |
| Max Workpiece Weight / Thickness | 2–5 kg |
| Control System | EtherCAT + Ethernet/IP PLC |
Ideal For
Industries
- Automotive
- Consumer Electronics
- Electrical Switchgear
Applications
- Lightweight part transfers
- Asymmetrical component handling
- Parts requiring grip rotation
- C-frame press automation

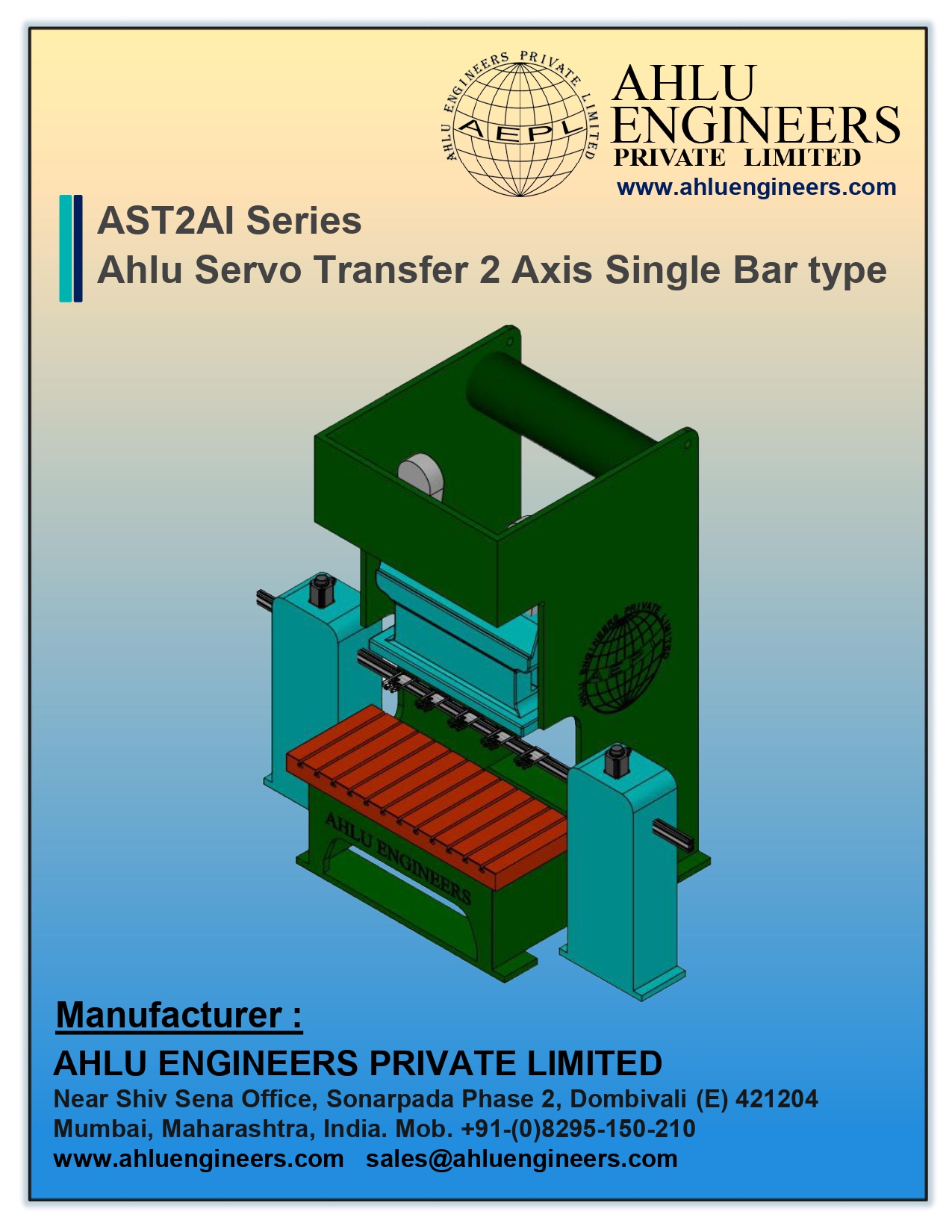

Product Catalogue
Ahlu Servo Transfer 2 Axis Single Bar type- AST2AI
Download Product Catalogue
Get comprehensive technical information, specifications, and usage guidelines for Ahlu Servo Transfer 2 Axis Single Bar type- AST2AI.
Free download • No spam • Instant access
Interested in Ahlu Servo Transfer 2 Axis Single Bar type- AST2AI?
Get in touch with our engineering team for detailed specifications, pricing, and lead times.
Request Quote for Ahlu Servo Transfer 2 Axis ...Explore Our Premium Solutions
Our wide array of expertly designed automation solutions, tailored to enhance your manufacturing processes with precision and efficiency.

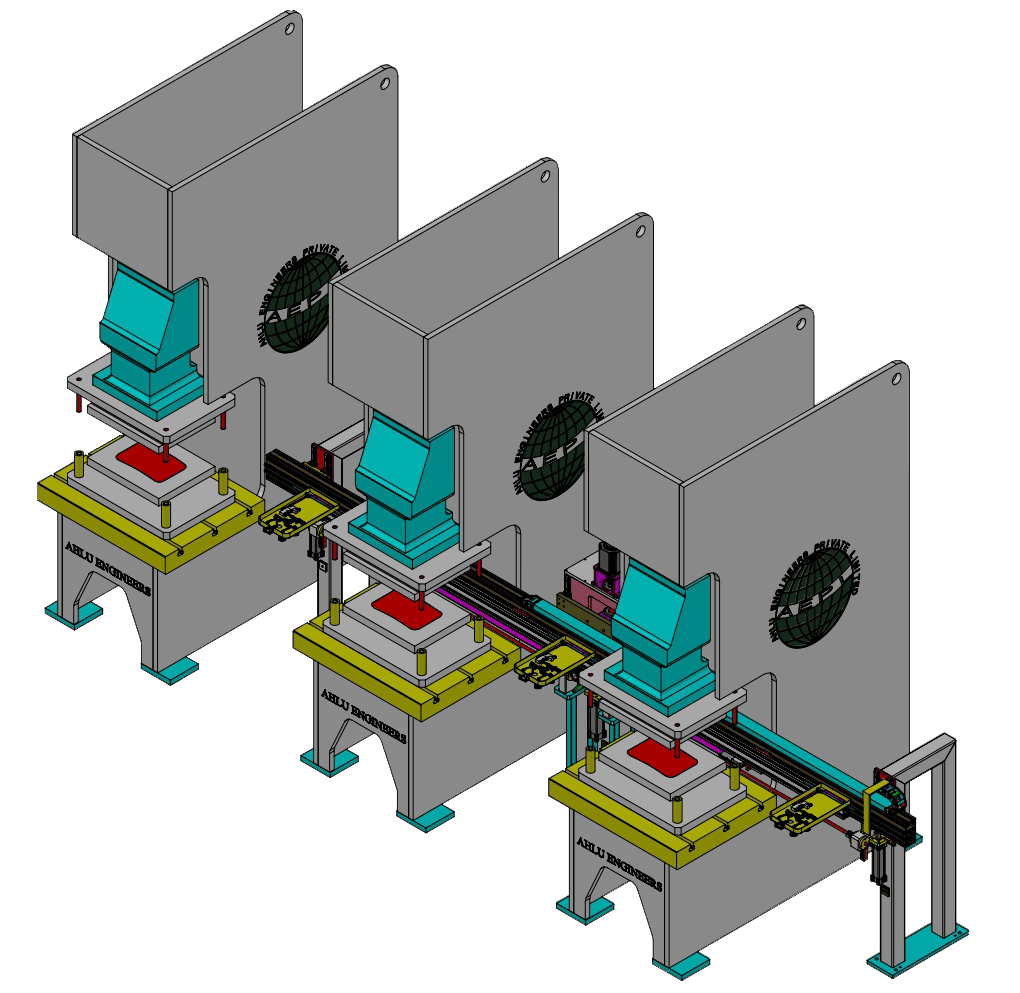

Ahlu Multi Press Transfer System- AMPTS Series
Ahlu Over Head Servo Transfer Robot - AOHST
Ahlu Blank Feeder- ABF Series

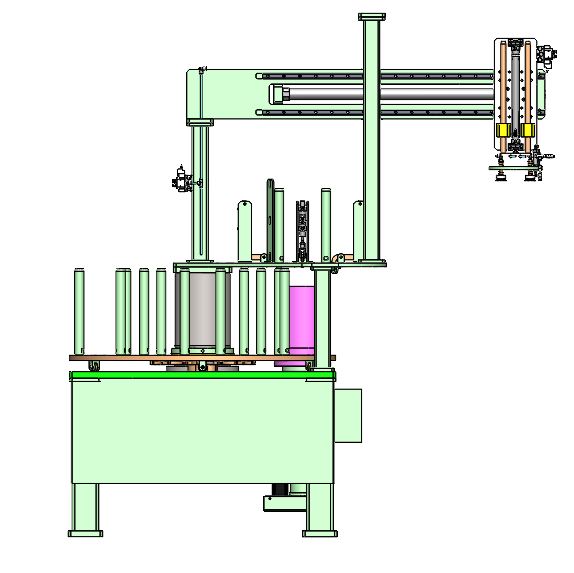

Indexing Stacker w/ Blank Feeder - AISBF Series
