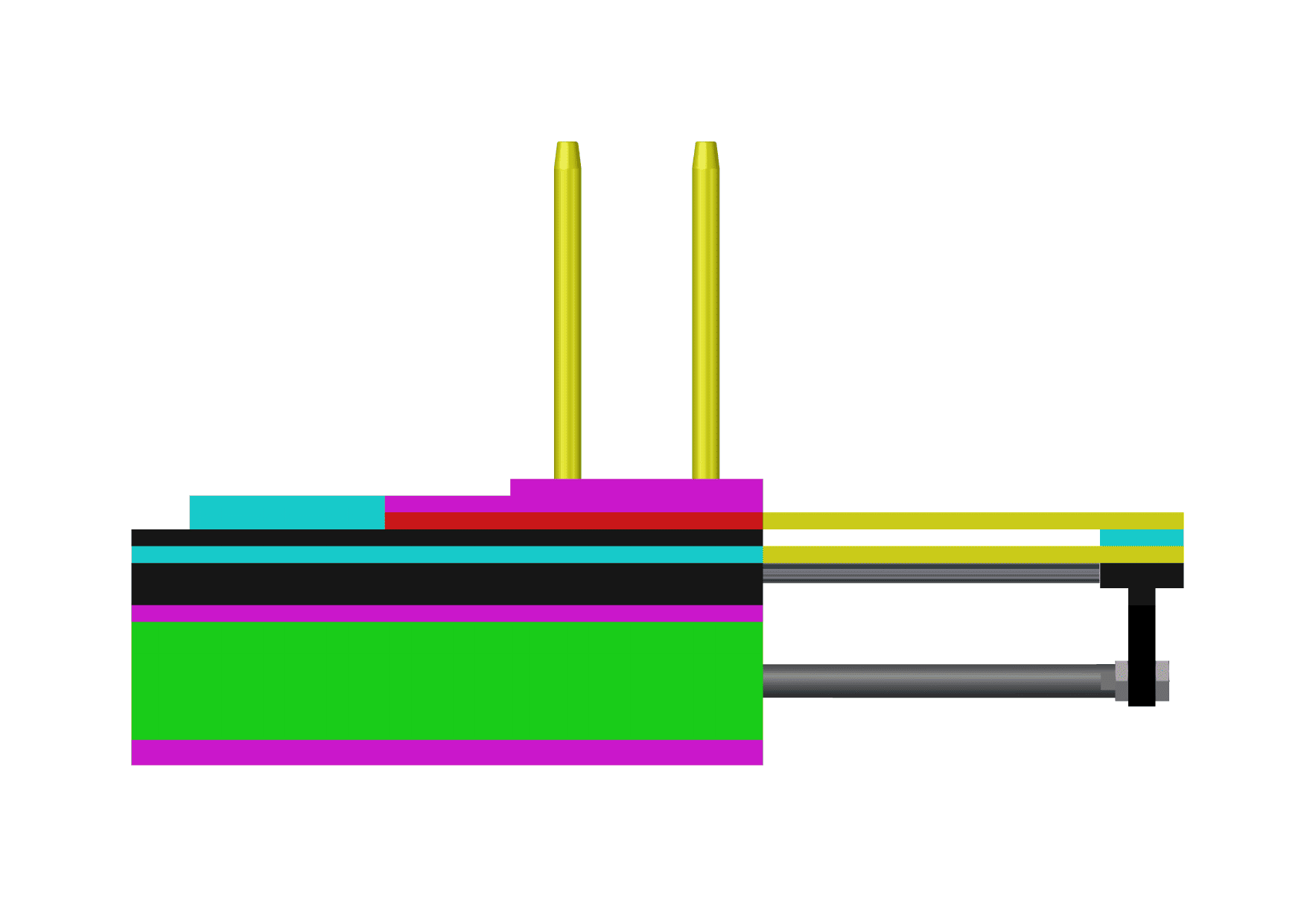

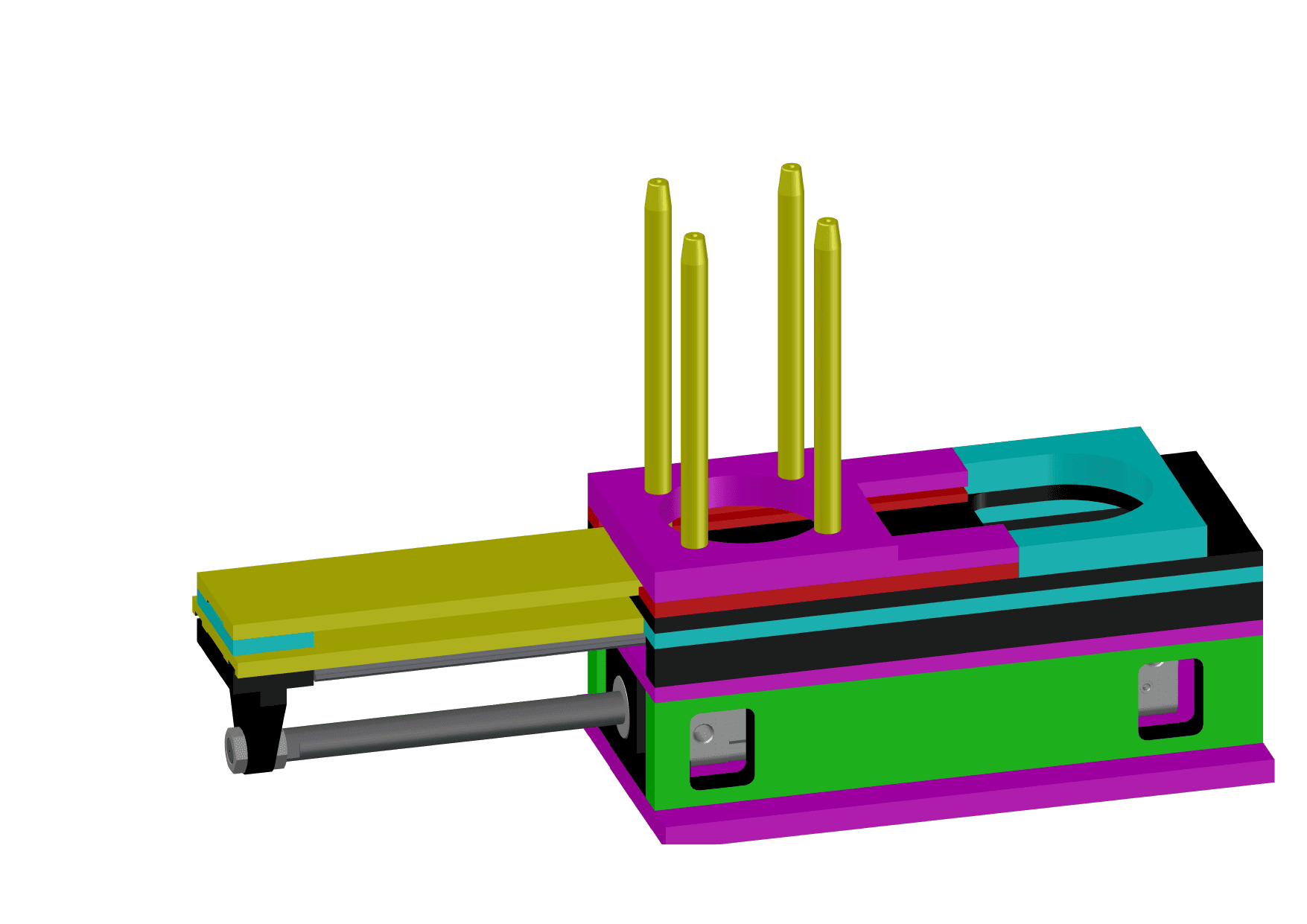

Ahlu Blank Feeder- ABF Series
The Ahlu Blank Feeder Series is designed for efficient and automated sheet feeding in stamping lines. Powered by a precision pneumatic cylinder, it delivers smooth to-and-fro motion for continuous operation. Built from durable tool steel, its heavy-duty frame ensures low wear and extended life. Linear bearings and guide rails offer accurate, low-clearance movement for consistent performance. Its double-decker design reduces cycle time, while the magazine-based system eliminates manual handling-enhancing operator safety and reducing human interference. Integrated press synchronization boosts press utilization and productivity, making it an ideal choice for modern, high-output manufacturing
Characteristics of Ahlu Blank Feeder
- Blank Feeder is synchronised with Press Ram movement with the help of Encoders / Cam box / Sensor arrangement based on the applicational requirements.
- As Feeding of Blanks is performed based on Press Ram positioning, it provides max. utilization of time with respect to Press operation cycle.
- This accessory provides continuous operation capability to the Press which not only doubles the existing production rate but also can be increased on multiple multiplier rate based on component variant.
- It eliminates the need of operator in Loading & Unloading of Blanks for certain set of operations after blanking. Similar operations performed on adjacent machines can be easily handled by the single operator.
- Magzine Feeding is manual but can be top up easily by the single operator for such multiple machines.
Technical Specifications
| Parameter | Value |
|---|---|
| Press Tonnage / Capacity Range | 60–300 Ton |
| Max Workpiece Weight / Thickness | ∅2 to ∅15 mm blank sizes |
| Control System | Encoder / Cam box synchronization |
Ideal For
Industries
- Automotive
- Fastener Manufacturing
- Electrical Components
Applications
- Blank-to-die feeding
- Magazine-based sheet feeding
- Automated press loading
- Multi-machine operation
