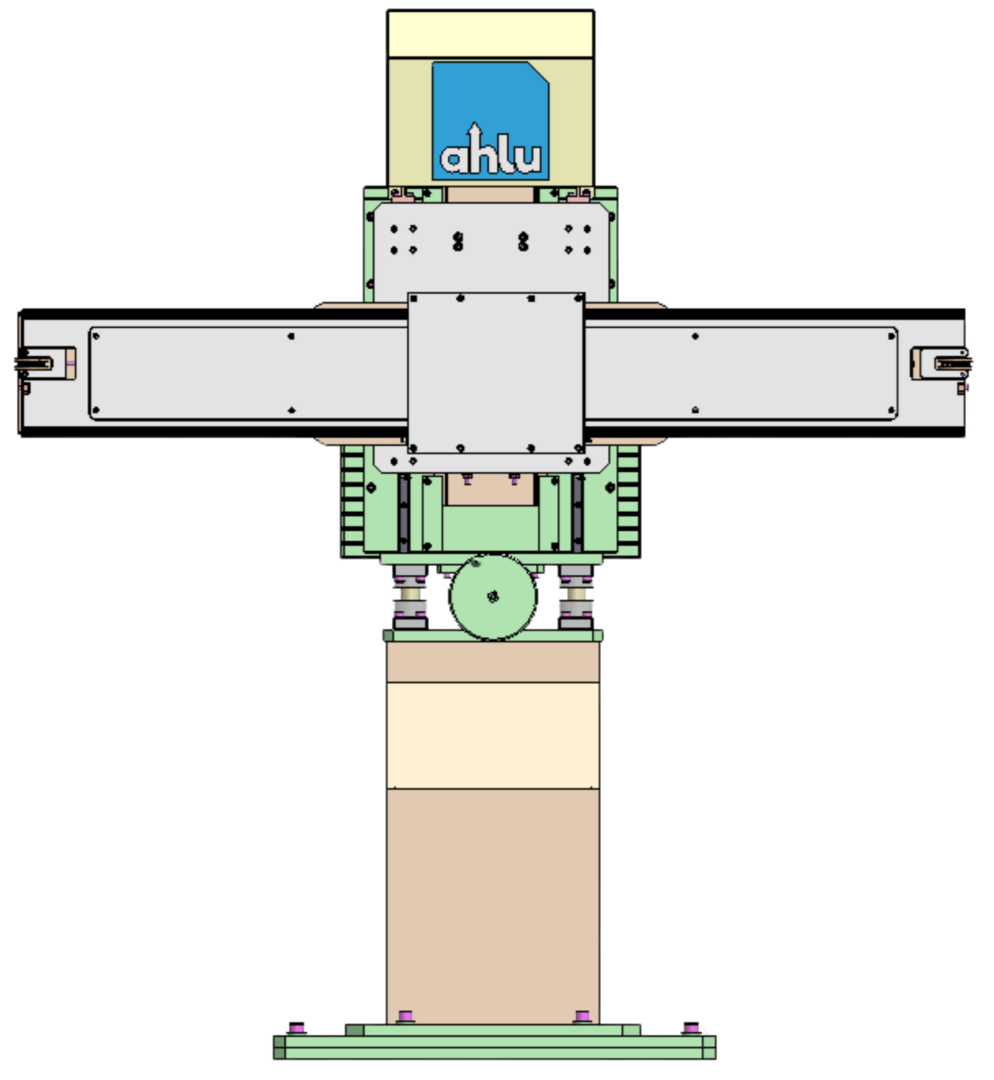

Ahlu Power Press to Power Press Transfer System- AP2P Series

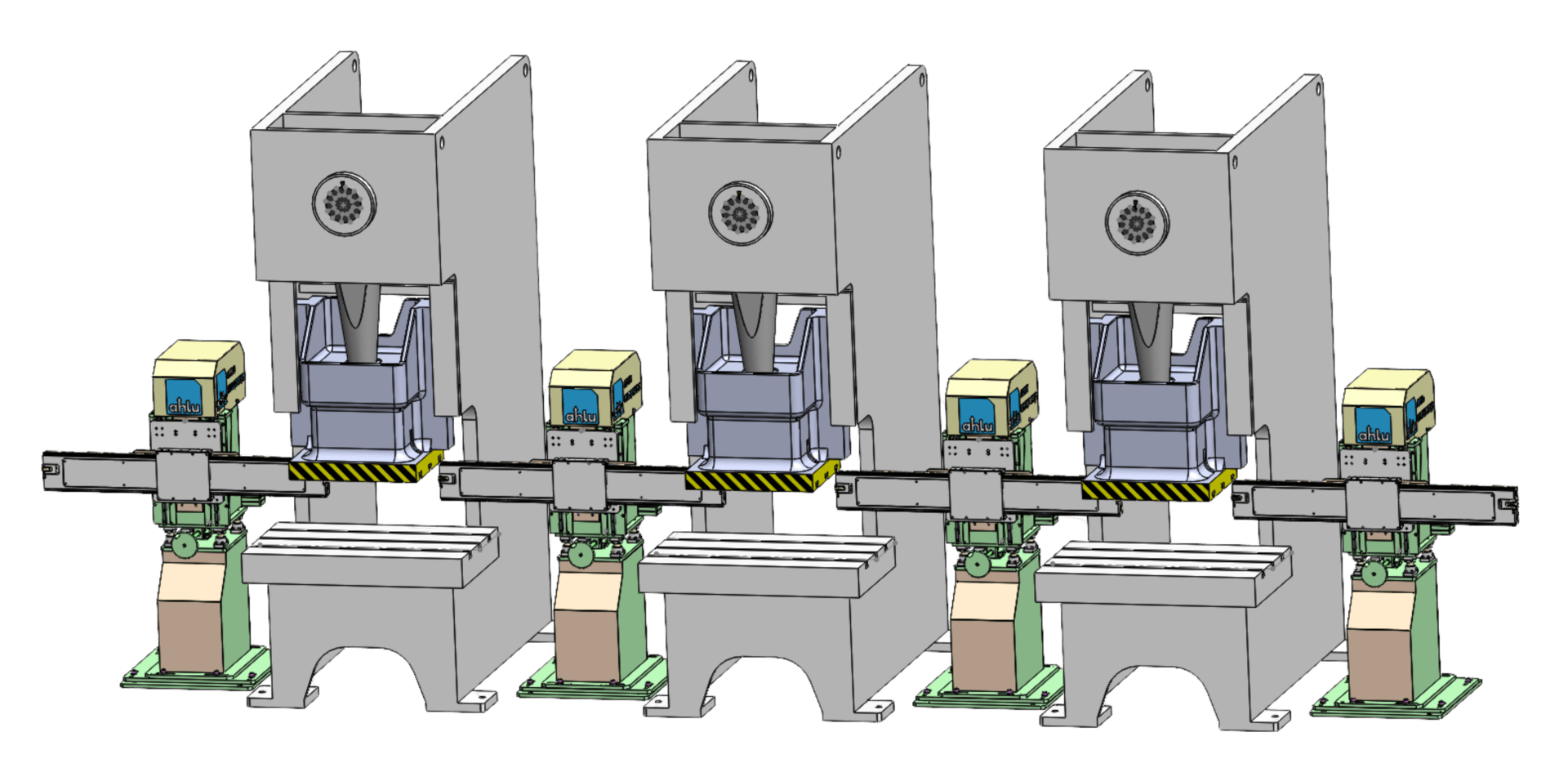

The AP2P Series by Ahlu Engineers is a compact, high-speed servo-driven transfer system designed for individual press-to-press automation. Engineered for precision, flexibility, and fast setup, AP2P lifts and positions components between presses without needing a fixed 3-press configuration.
Applications
- Independent press lines where flexible automation is required between standalone presses
- Automotive components like brackets, mounts, and bush housings that need precise, point-to-point transfer
- Appliance and electrical enclosure parts where press spacing, layout, and part variety demand frequent setup changes
- Tool rooms and job shops handling short-batch or high-mix stamping operations
- Production setups with uneven passlines, where programmable lift and placement compensate for press height variations
Technical Specifications
| Parameter | Value |
|---|---|
| Transfer Pitch / Stroke Range | -1000 to 1000 mm (2 variants) |
| Number of Axes | 2 (X Transfer + Z Lift) |
| Number of Servos | 2 |
| Maximum SPM | 15 spm (AP2P-500) |
| Press Tonnage / Capacity Range | 80–400 Ton |
| Bar Type | Single Bar |
| Gripper Axis | No |
| Max Workpiece Weight / Thickness | 2–3 kg |
| Control System | EtherCAT + Ethernet/IP PLC |
Ideal For
Industries
- Automotive
- Appliance
- Electrical Enclosures
- Tool Rooms
Applications
- Press-to-press automation
- Short-batch stamping
- Independent press line transfers
- High-mix low-volume production
Product Videos
Interested in Ahlu Power Press to Power Press Transfer System- AP2P Series?
Get in touch with our engineering team for detailed specifications, pricing, and lead times.
