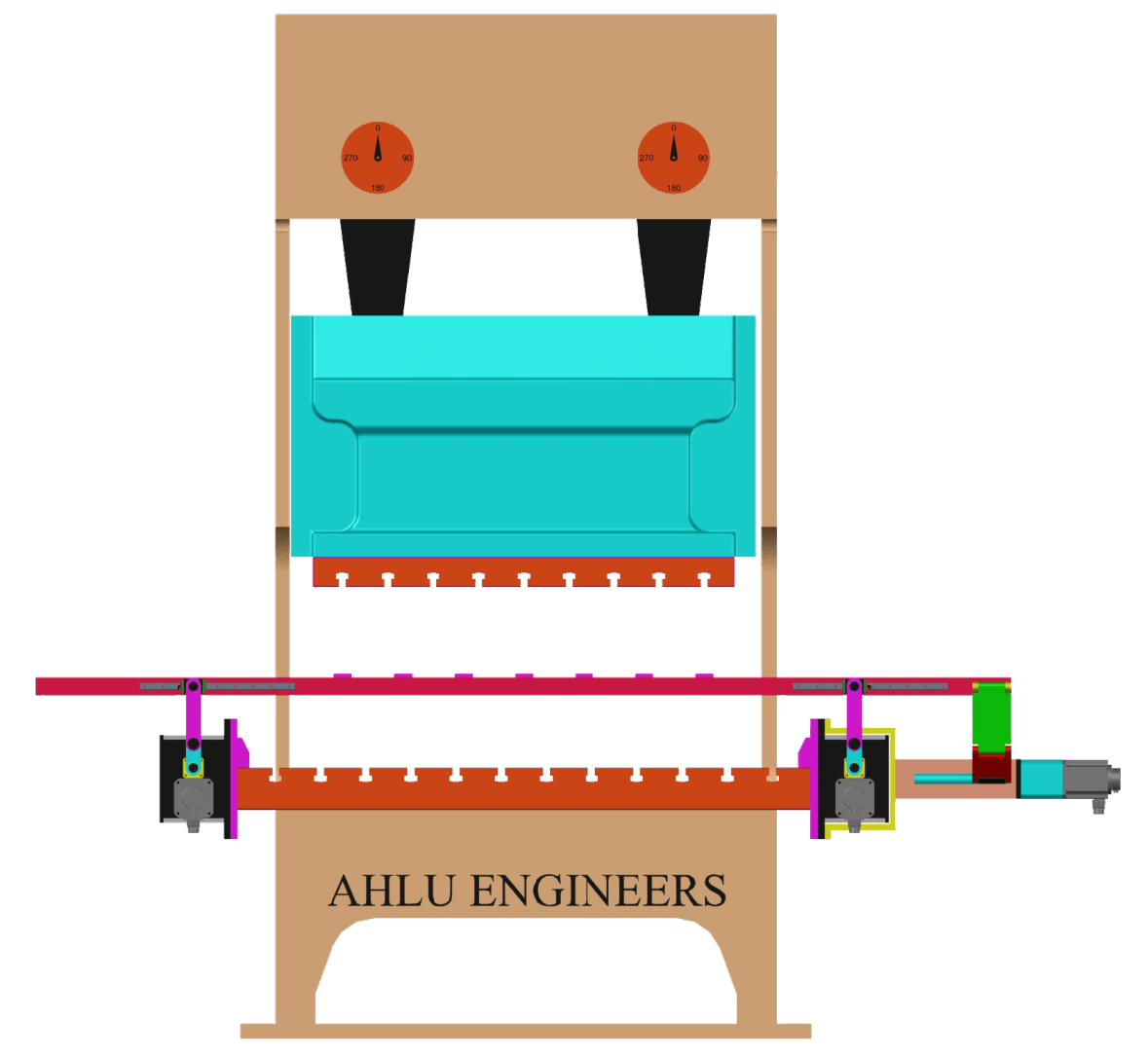

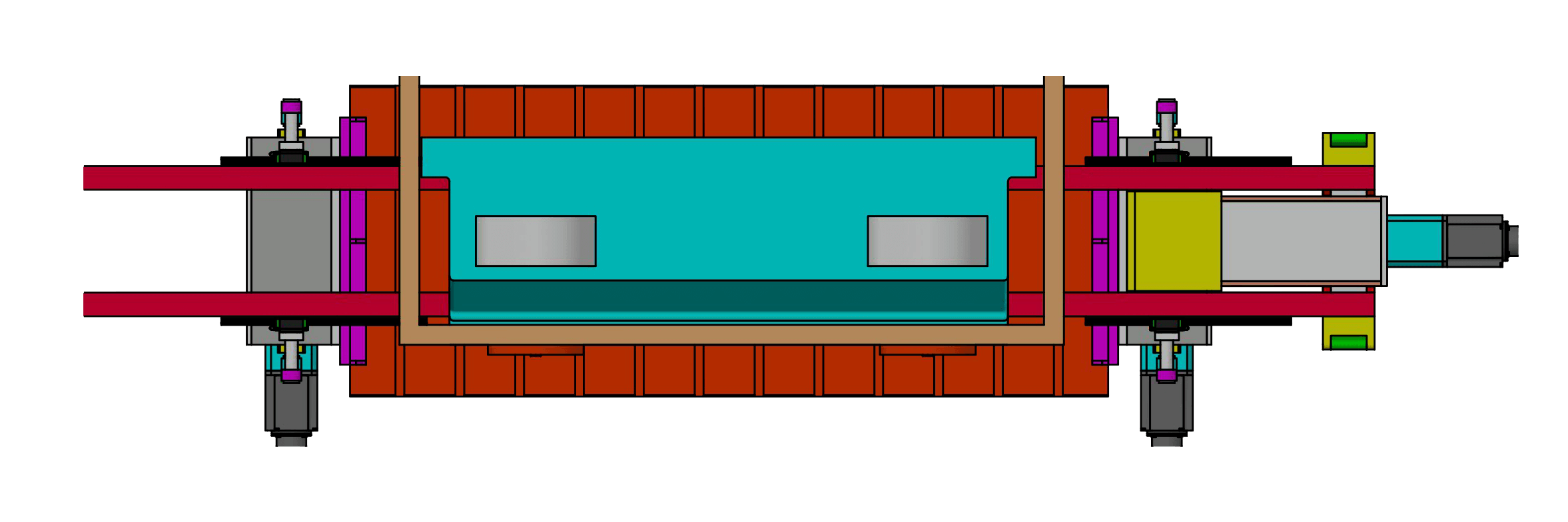

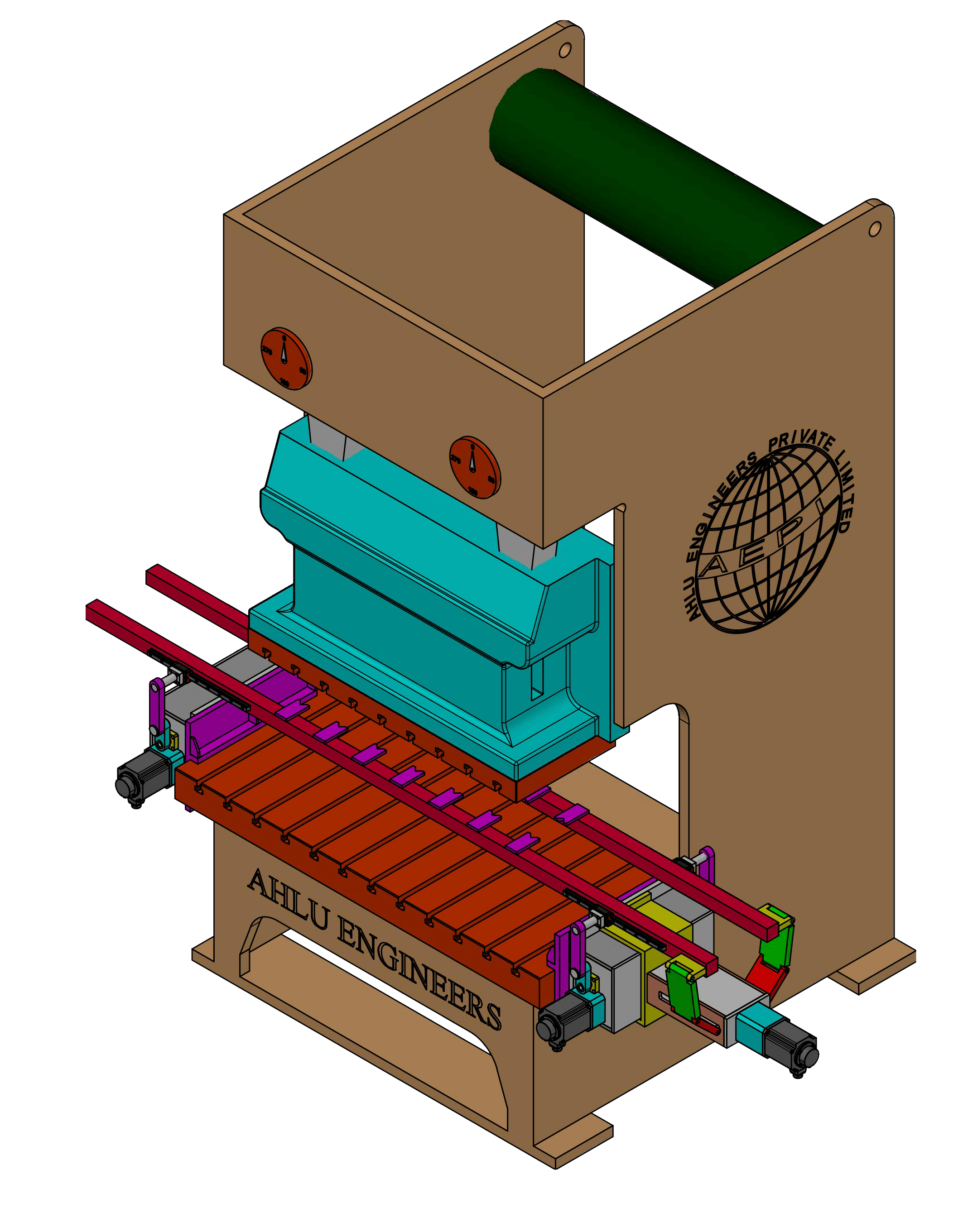

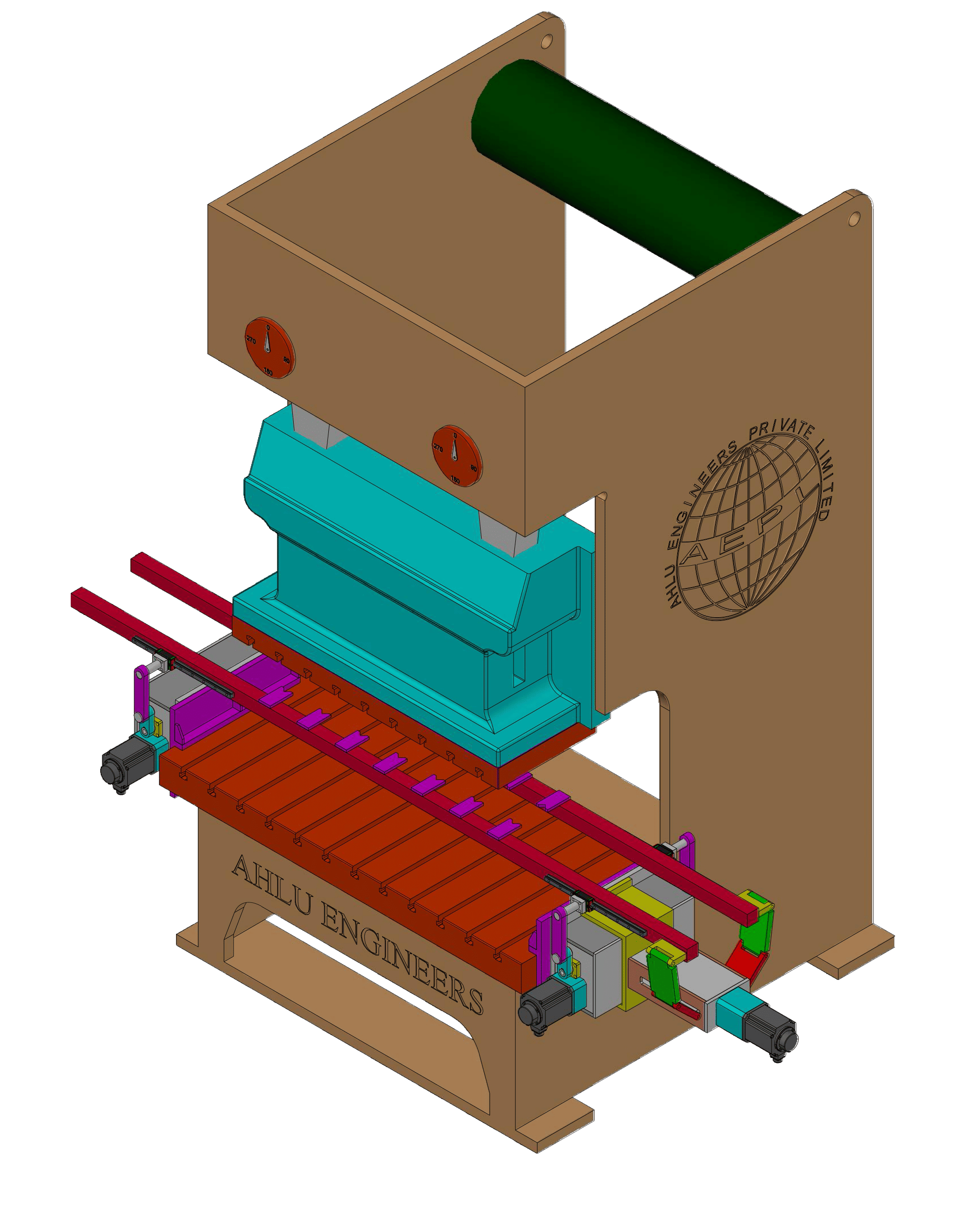

Ahlu Servo Transfer 2 Axis Double Bar type- AST2AII
Mount this system on a general-purpose press machine to achieve high-speed transfers in 2 Axis for high-speed transfer processing. The high- speed programmable transfer system drives a transfer unit via a set of servo motors with the help of a double bar mechanism. Three variants of AST2AII series are available so that you can select a transfer pitch appropriate for your purpose.
Common Characteristics of Two Bar System
- Each Servo Axis is operated with high accuracy with the help of Precision Servos.
- To Protect Tooling and Machine, each system is by-default comes with mis-feed, die-stuckage & Jamming detection feedbacks are taken in each process cycle to provide required safety.
- The Position Synchronization is performed with the help of Rotary Encoders which connects to the crankshaft of the press. All the transfer axes are driven by servo motor and run synchronously with the press.
- Along with Encoders, Transfer System Controller stays in-continuous communication with press PLC along with the Additional Hard Sensors mounted on output shaft via Rotary cam box to reduce any accidental risk in case of Encoder failure.

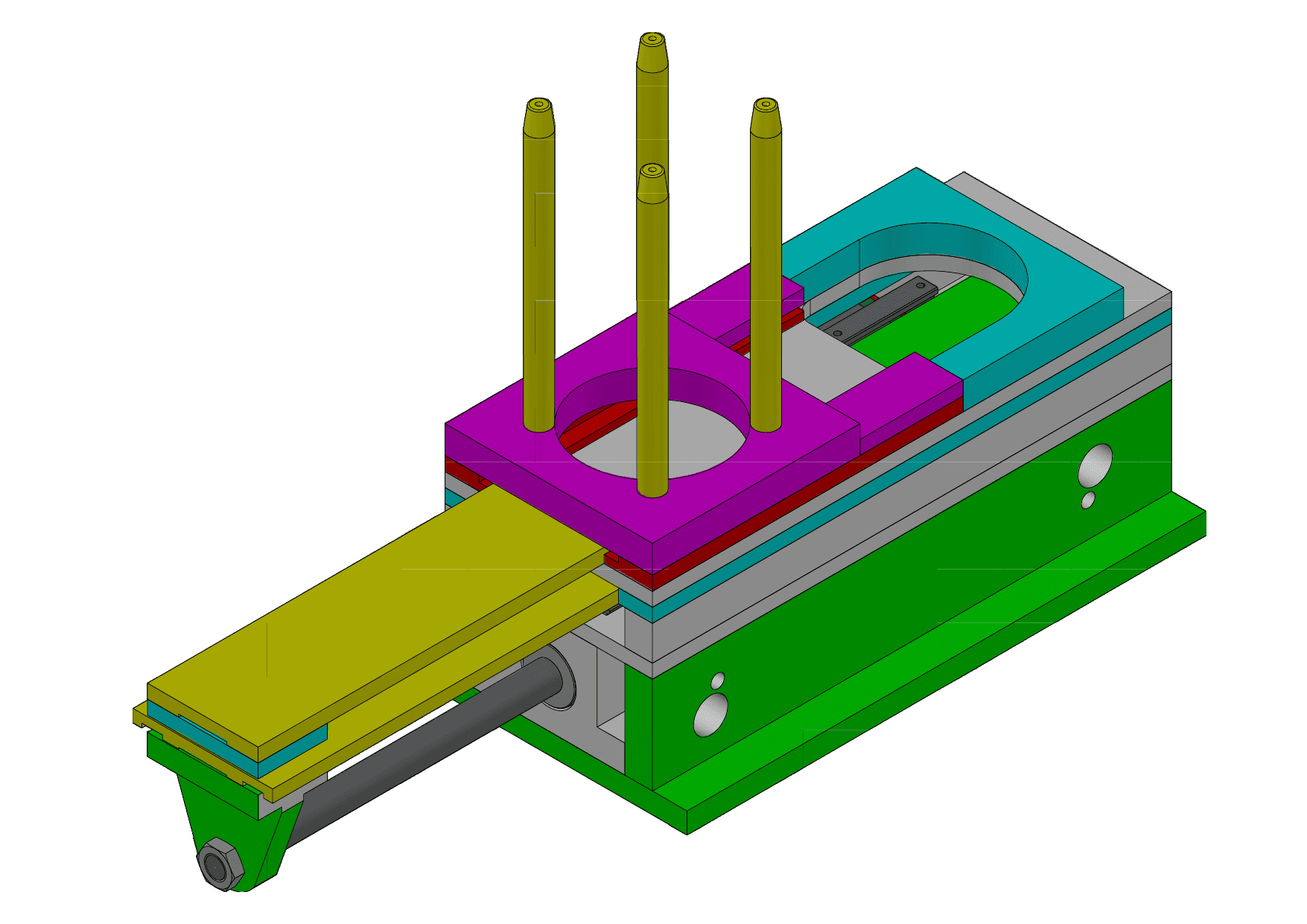

- Blank Feeders are generally used to feed Blanks via Magazine type feeders but Servo Sheet Feeders or Zig Zag Feeders can also be utilized by customizing to suit Transfer system & its respective press.
Technical Specifications
| Parameter | Value |
|---|---|
| Transfer Pitch / Stroke Range | 0–500 mm (3 variants) |
| Number of Axes | 2 (X Transfer + Y Clamp) |
| Number of Servos | 2 |
| Maximum SPM | 40 spm (AST2AII-125L) |
| Press Tonnage / Capacity Range | 80–400 Ton |
| Bar Type | Double Bar |
| Gripper Axis | No |
| Max Workpiece Weight / Thickness | 2–5 kg |
| Control System | EtherCAT + Ethernet/IP PLC |
Ideal For
Industries
- Automotive
- White Goods
- Electrical Components
- General Stamping
Applications
- High-speed multi-station transfer
- Sheet metal blanking & forming
- Symmetrical part handling
- Mass production stamping lines
Product Catalogue
Ahlu Servo Transfer 2 Axis Double Bar type- AST2AII

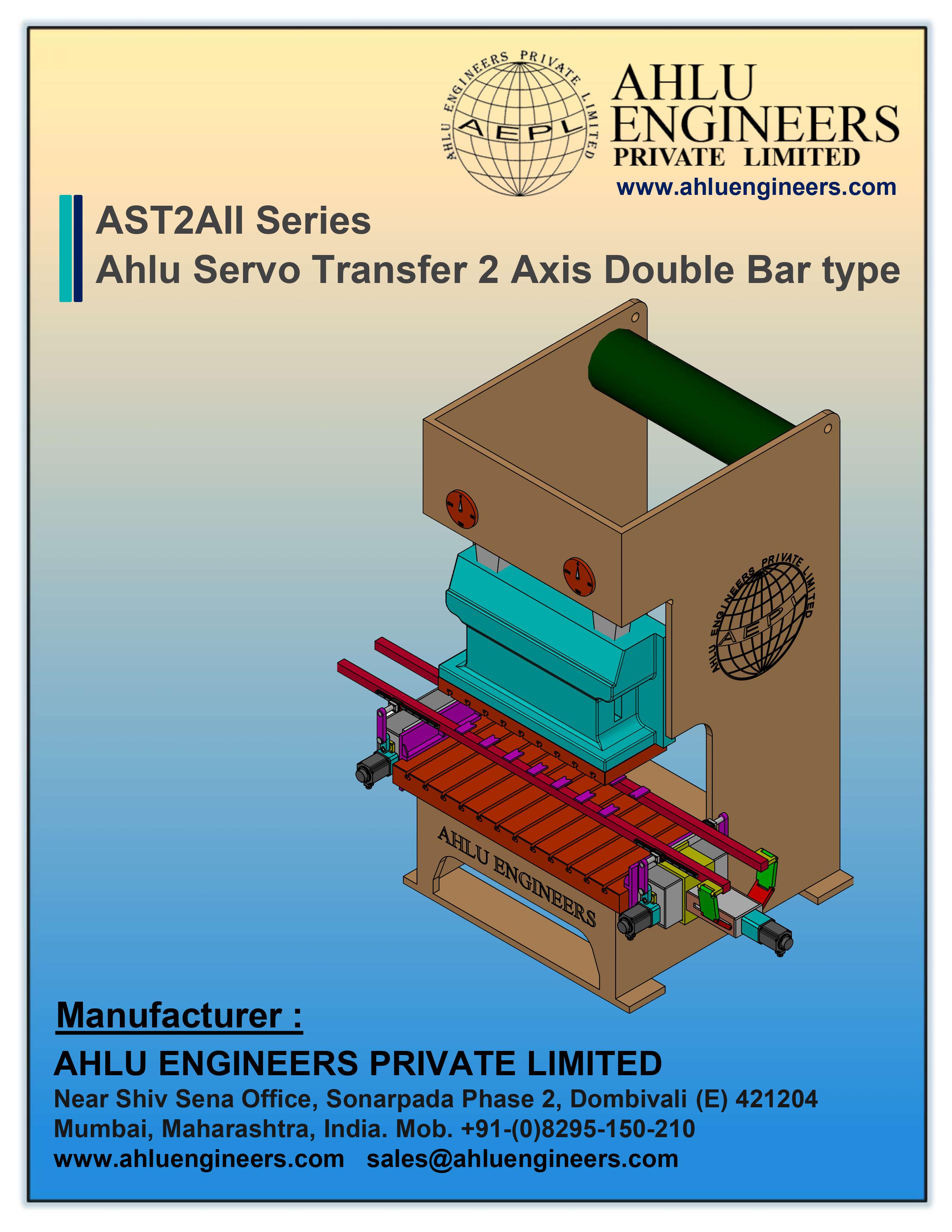

Download Product Catalogue
Get comprehensive technical information, specifications, and usage guidelines for Ahlu Servo Transfer 2 Axis Double Bar type- AST2AII.
Free download • No spam • Instant access
Product Videos
Interested in Ahlu Servo Transfer 2 Axis Double Bar type- AST2AII?
Get in touch with our engineering team for detailed specifications, pricing, and lead times.
