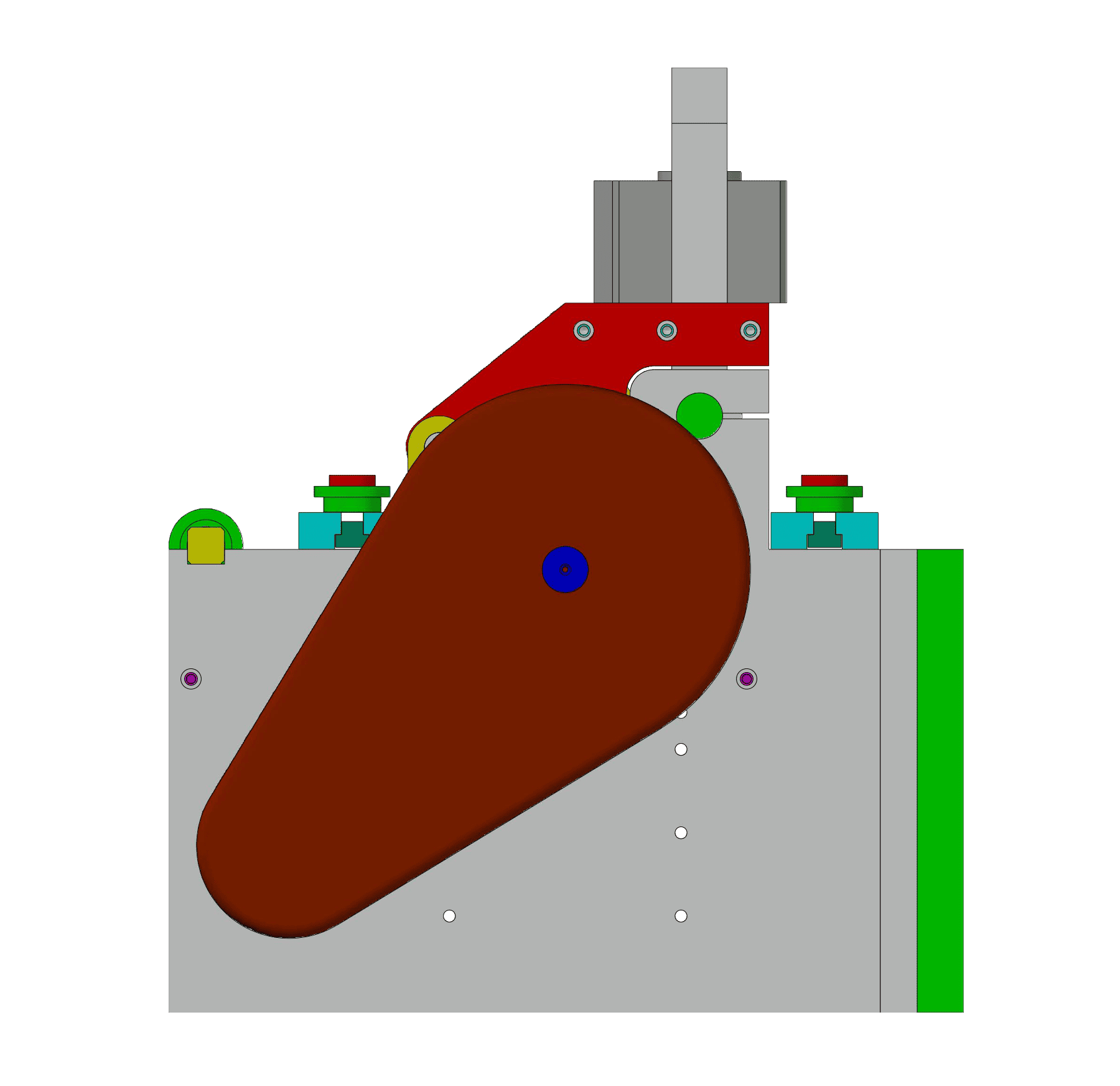

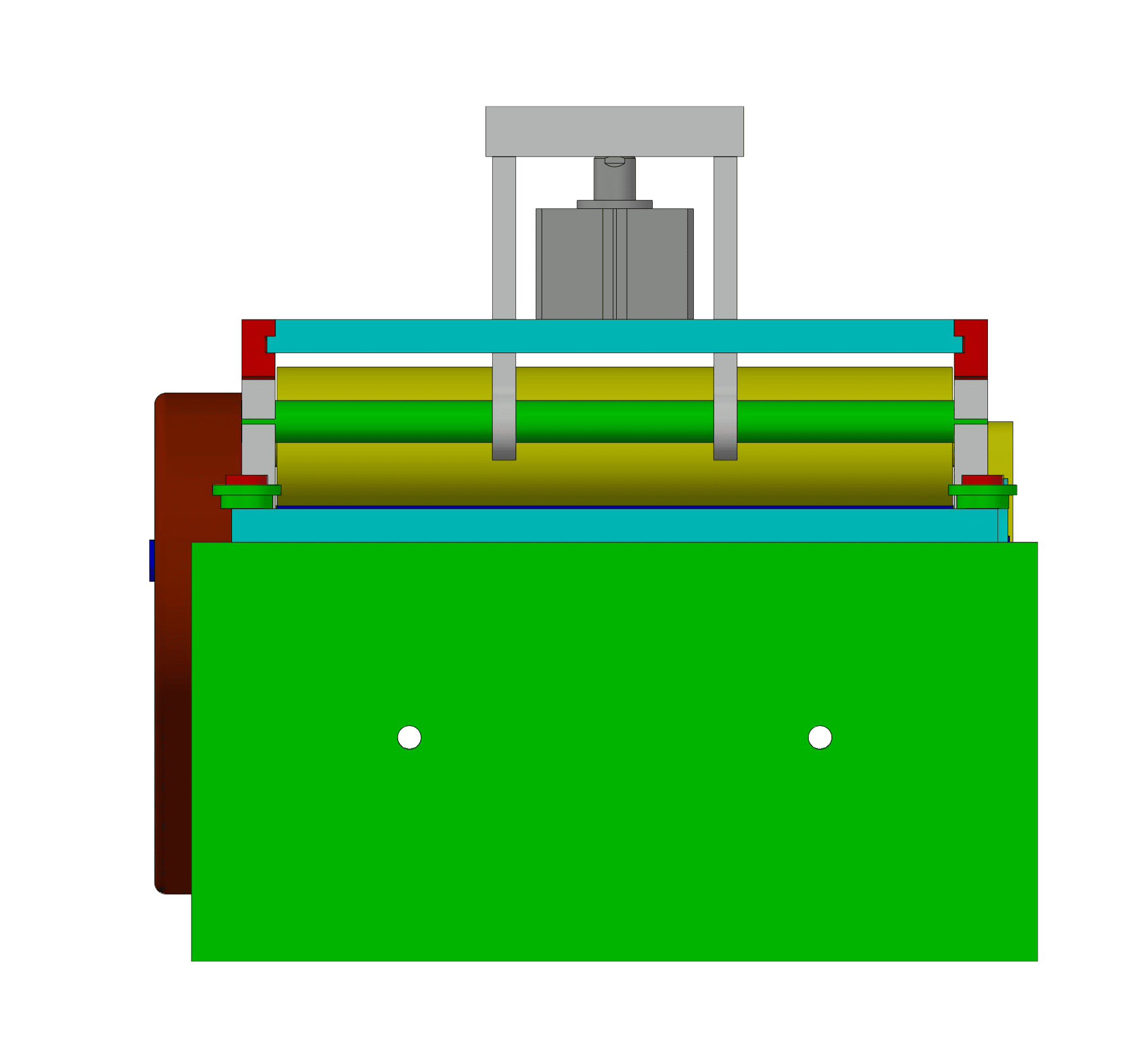

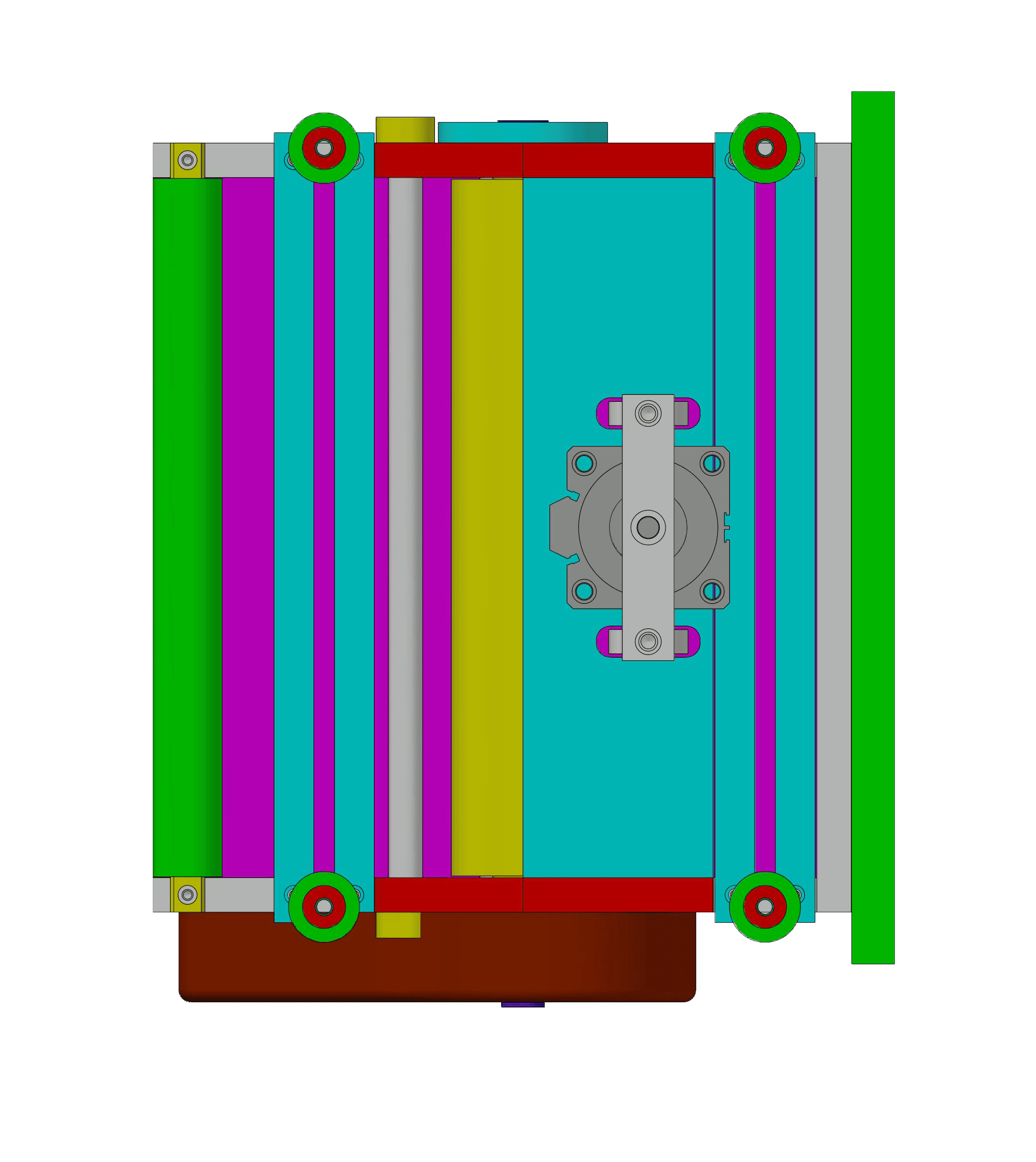

Ahlu Servo Roll Feeder type- ASRF Series
ASRF is dedicatedly developed to facilitate easy feeding of sheet length feeding where coil feeding is not possible. Generally, Thicker sheets lie in this criteria but smaller thickness options provide better suitability of the product.The best part is It is synchronized with Power Press. Automatically each stroke is accountable with only sheet feeding/insertion via (existing) Manpower.
Introduction
- Out of available two variants in same series ASRF, MS series is used for lower thickness range sheet feeding which lies between 0.3 – 3.5 mm.
- MS Series is the economical variant developed to automate the sheet feeding operation where Sheet coils can not be directly used and sheared Sheets are the only option.
- HS Series is the Heavy duty variant for thicker sheet feeding till 6mm Thickness.
- Also, Servo Roll Feeder comes with Two Stationed system based on application to synchronize with each other to form a unified arrangement such that sheet remains in contact with any one station always throughout operation cycle.
- Press synchronization along with Feeder is must to make sure operation stays smooth and uninterrupted for efficient results.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Servos | 1–2 (depending on configuration) |
| Maximum SPM | 40 MPM max velocity |
| Max Workpiece Weight / Thickness | Up to 6 mm thickness (HS), 3.5 mm (MS) |
| Control System | EtherCAT + Ethernet/IP PLC |
Ideal For
Industries
- Automotive
- Steel Furniture
- Construction Hardware
Applications
- Thick sheet feeding
- Sheared sheet-to-press feeding
- Progressive die feeding
- Synchronized press feeding
Product Catalogue
Ahlu Servo Roll Feeder type- ASRF Series
Download Product Catalogue
Get comprehensive technical information, specifications, and usage guidelines for Ahlu Servo Roll Feeder type- ASRF Series.
Free download • No spam • Instant access
Interested in Ahlu Servo Roll Feeder type- ASRF Series?
Get in touch with our engineering team for detailed specifications, pricing, and lead times.
Request Quote for Ahlu Servo Roll Feeder type...Explore Our Premium Solutions
Our wide array of expertly designed automation solutions, tailored to enhance your manufacturing processes with precision and efficiency.

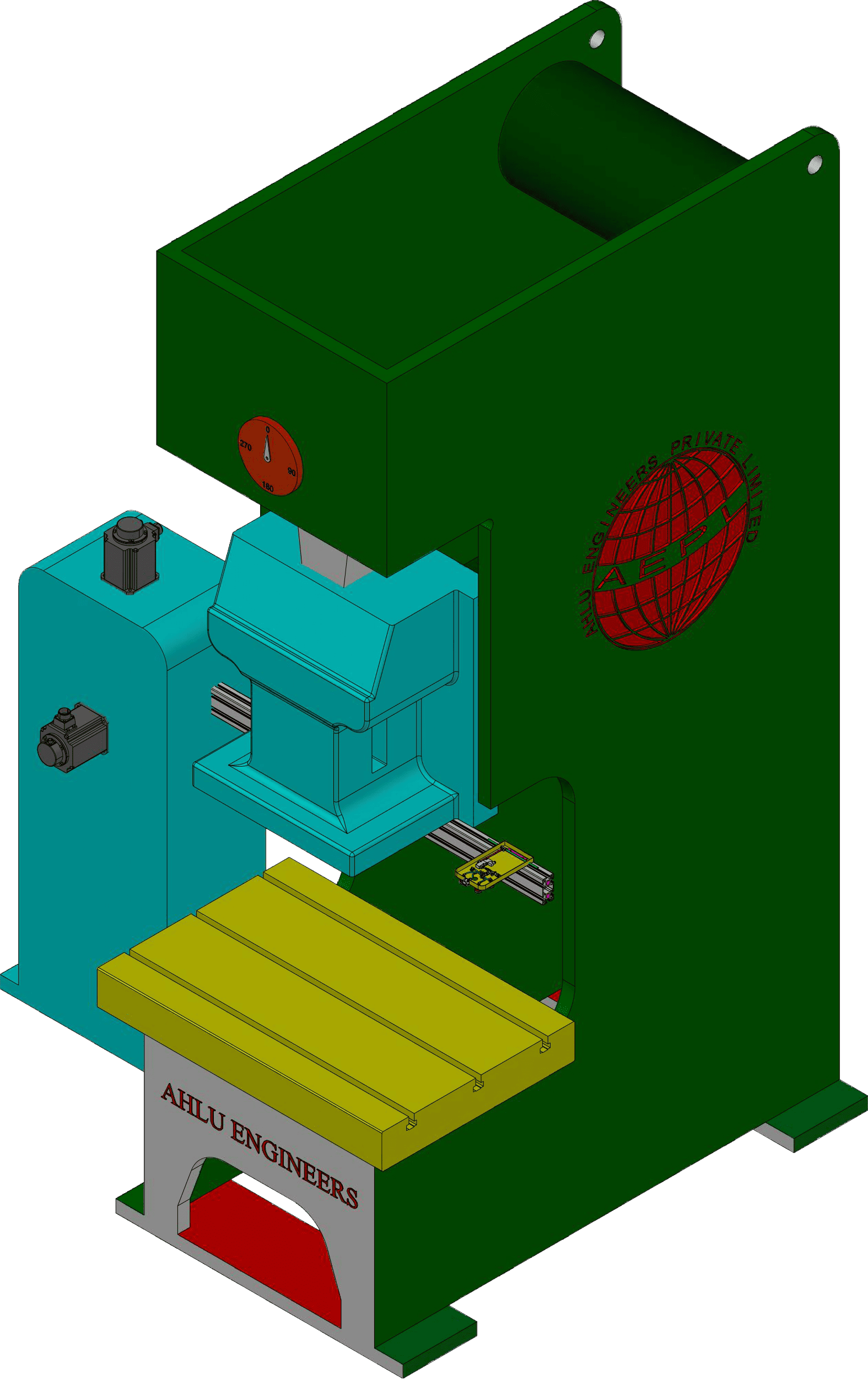

Ahlu Power Press to Power Press Transfer System- AP2P Series
Compound Dies

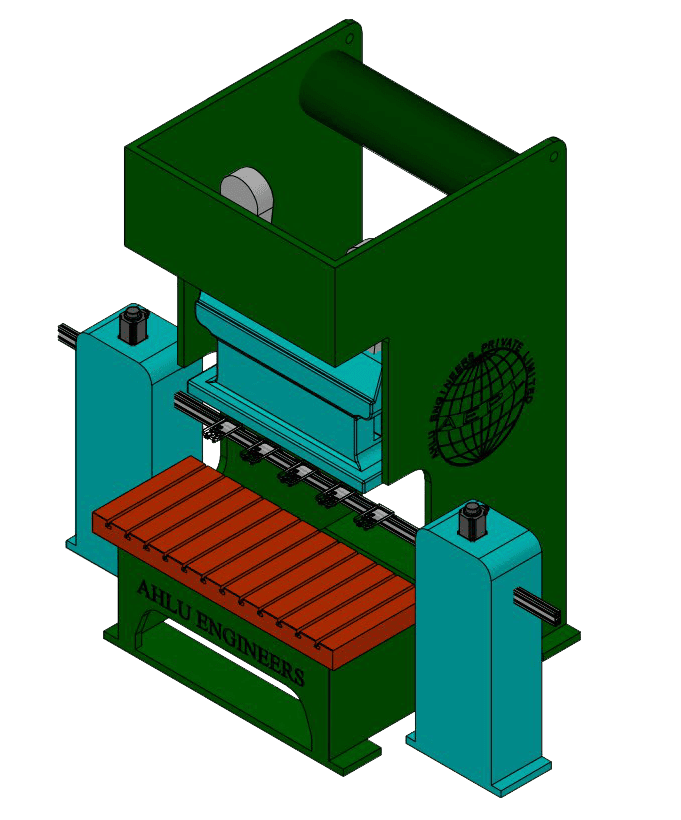

Ahlu Multi Press Transfer System- AMPTS Series
