Transfer Press Manufacturers in India
Your 5-Operator Press Line
Can Run With 1
Most clients recover the full investment in 8–12 months through labor savings and 150%+ production increase.
What a Manual Press Line Looks Like
Walk into any sheet metal stamping shop in India running manual transfer and you'll see the same picture: 4–5 operators standing around each press, gripping blanks with long tongs, loading them into the die, waiting for the ram to cycle, then pulling the part out and passing it to the next station. The press runs at 8–12 strokes per minute — not because the machine can't go faster, but because human hands can't move faster. After 4 hours of this, fatigue sets in. Parts start coming out with dimensional variation. Reject bins fill up. The press keeps running, but the output is inconsistent.
Then there's the safety problem nobody wants to talk about until it happens. Tong burns on forearms. Crush injuries when an operator reaches into the die area a fraction of a second too early. Near-misses that never get reported. Every press in the line needs its own crew, which means a 4-press line ties up 16–20 workers per shift. Multiply that by 2 or 3 shifts and you're looking at 40–60 people doing a job that one person and a servo transfer system can handle.
What an Automated Transfer Press Line Looks Like
Replace the tongs and the crew with an AST2AII servo transfer system. Double feed bars — driven by 3 independent servo motors — pick up blanks, move them across stations, and place them into each die with ±0.1 mm accuracy. The transfer arms are synchronized with the press slide position through absolute encoders and an EtherCAT bus, so the motion profile adjusts in real time to the press speed. No mechanical cams. No timing chains. If the press slows down, the transfer slows down. If the press stops mid-stroke, the transfer holds position.
One operator monitors the entire line from an HMI console positioned outside the die area. Category 4 safety light curtains prevent any manual access during operation — if the curtain breaks, the press and transfer stop within 50 milliseconds. The result: up to 40 strokes per minute, consistent part quality across every stroke, zero operator exposure to the die area, and a press line that runs the same at hour 1 as it does at hour 8.
System Configurations
Four configurations to match your press line layout, tonnage, and production volume.

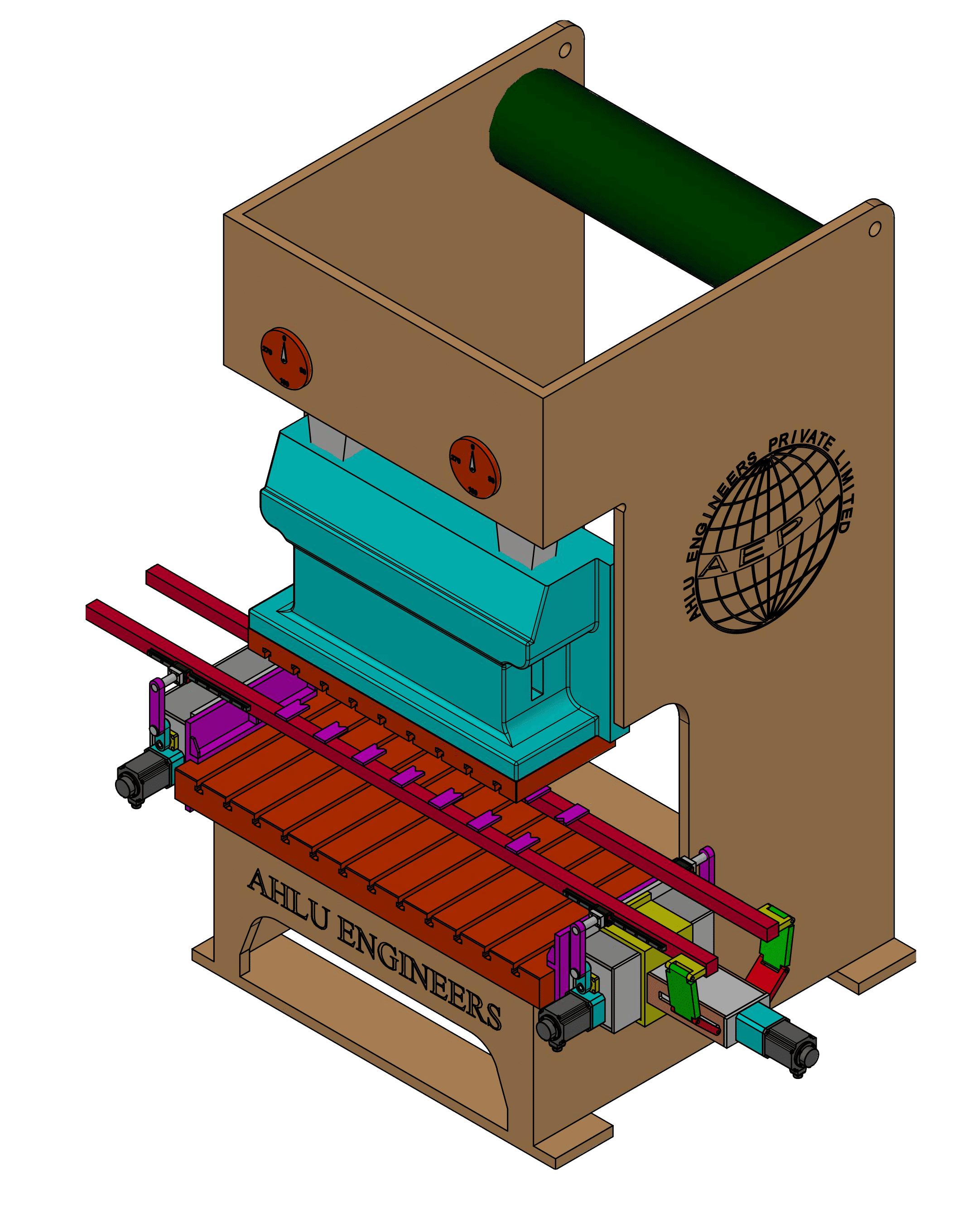

Single-Press Multi-Station (AST2AII)
2-axis double bar transfer with 3 servos. Handles up to 500 mm feed stroke and 5 kg part weight. Fits 80–400T mechanical or hydraulic presses.
₹15–35 Lakh
Multi-Press Inline (AMPTS)
Connects separate presses into a synchronized line. ±0.2 mm positioning accuracy. Handles 110–600T presses with independent station control.
₹25-50 Lakh/station

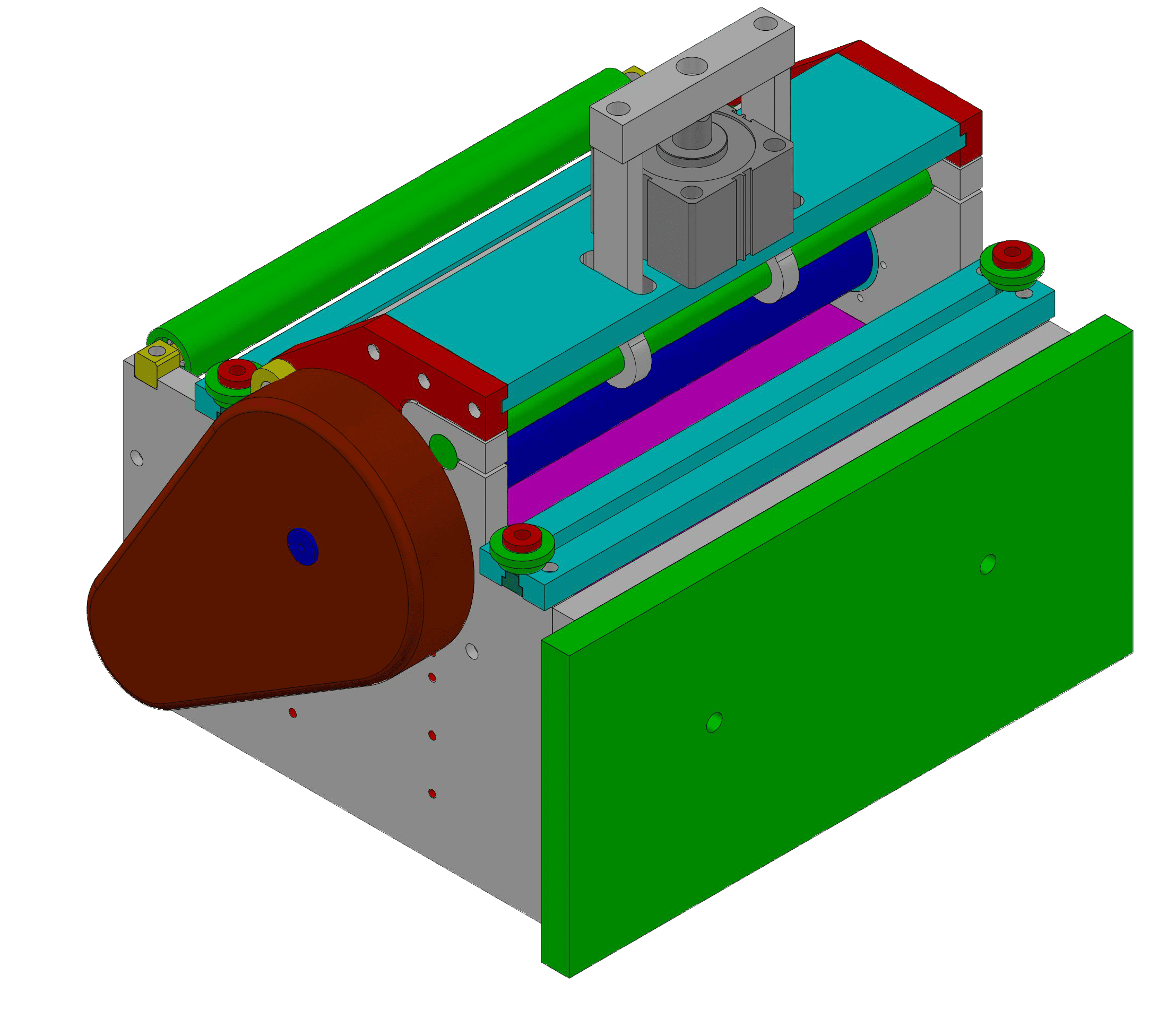

Coil-Fed Lines (ASRF + Transfer)
Servo roll feeder feeds coil stock, transfer system moves parts between stations. Coil width up to 1000 mm. Eliminates blanking as a separate operation.
₹10-13 Lakh for feeder
Complete Turnkey Package
Press + transfer system + dies + electrical panel — all from one vendor. Single-vendor accountability means one phone number to call when something needs attention.
₹30–80 Lakh depending on configuration
ROI Breakdown
Real numbers from plants that switched from manual to automated transfer.
| Investment Line Item | Monthly Impact |
|---|---|
| Operator reduction (4→1 operators × ₹15,000/month) | ₹45,000–60,000 saved/month |
| Production increase (150%+ more parts at higher SPM) | Revenue increase |
| Reject reduction (consistent ±0.1 mm positioning) | Material cost savings |
| Safety claims eliminated | Insurance + compliance savings |
| Typical payback period | 8–12 months |
Industrial Applications
Ahlu Engineers' transfer press lines deliver high efficiency and safety across key manufacturing sectors in India.
Automotive Part Manufacturing
High-efficiency production of structural automotive stampings, suspension brackets, brake assemblies, and seat frames.
White Goods & Appliances
Stamping of large, cosmetic outer casings for washing machines, refrigerator liners, and air conditioner chassis.
Industrial & Structural Hardware
Mass production of heavy hinges, electrical box components, drawer slides, and architectural metal parts.
Why Choose Ahlu Engineers?
Ahlu Engineers is a certified and trusted Indian manufacturer with over 7 years of field-proven expertise in heavy-duty press automation and custom tooling systems.
±0.1 mm
Repeatable Feeding Accuracy
Ultra-precise servo-driven blank positioning minimizes scrap and ensures consistent part quality.
40 SPM
High-Speed Operations
Boosts production throughput by up to 150% compared to manual line limits.
7+ Years
Field Deployments
Proven reliability with years of continuous operation in high-demand industrial environments.
5,000+ Sq. Ft.
Plant in Rajkot
Modern, fully-equipped manufacturing facility dedicated to heavy-duty press automation.
Tier-1
Trusted Deployments
Preferred automation partner for major Tier-1 automotive and appliance component manufacturers.
Top 10
SPM Maker Recognition
Nationally recognized for excellence and innovation in Special Purpose Machine engineering.
What's Included
Frequently Asked Questions
Yes. Based on your component requirements and target volume capacity, we work out an automation plan that is ROI-friendly and delivers an efficient workflow. Once the feasibility study is complete, we request your machine details to customise the solution accordingly. We offer multiple standard automation models that are easy to adapt to various press architectures — keeping integration straightforward and cost-effective.
18–60 months, depending on the level of project customisation required. Payback is driven by operator reduction (1 operator instead of 4–5 per press), a 150%+ increase in production from higher SPM, and near-zero rejects from ±0.1 mm positioning accuracy. Plants running 2–3 shifts see payback even faster because the savings multiply with each shift.
Yes. We offer a complete portfolio of press automation that includes custom presses, pick-and-place and transfer automation, along with compatible progressive, transfer, and compound dies. Our project range is designed to work with your existing feasible machines — reducing the overall project cost significantly.
12 months from the commissioning date — not from dispatch. An optional AMC (Annual Maintenance Contract) includes quarterly preventive maintenance visits, 24-hour emergency response, and priority spare parts pricing. We stock all wear parts for our standard transfer systems.
Get a Free Automation Feasibility Study
Send us your press model, bed dimensions, and part drawing. We'll tell you what's possible within 48 hours.
